When a duct joint fails mid-season or an insulation seam separates under thermal cycling, the tape that was holding it is the first thing that gets blamed — and rightly so. Aluminium foil tape is not a category where "good enough" holds up over time. It either seals completely, handles the temperature range, and stays bonded through years of expansion and contraction — or it becomes a maintenance problem waiting to happen. Pioneer Tapes manufactures and supplies aluminium foil tape built for exactly these demands — HVAC duct sealing, insulation joint seaming, thermal masking, electroplating, and a range of industrial applications where the tape needs to perform at both high and low temperature extremes without adhesive failure, edge lift, or vapour ingress.
As a Pune-based industrial foil tape supplier with pan-India supply capability, we help procurement teams, HVAC contractors, and facility managers choose the right foil tape thickness and adhesive system for their specific application — so the installation holds the first time and keeps holding. Today, we're proud to support a wide range of multinational companies with our solutions.

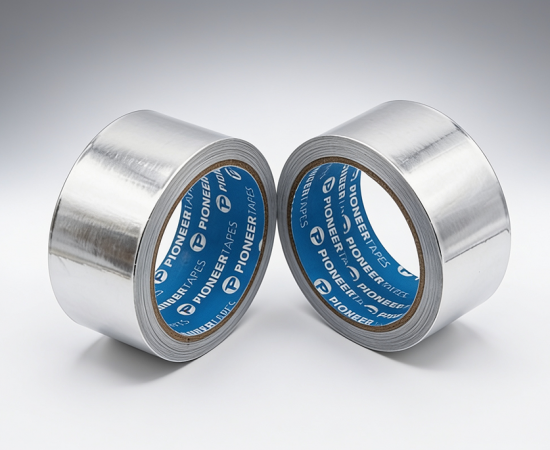

What is Aluminium Foil Tape?
Aluminium foil tape — also written as aluminum foil tape in US-standard specifications — is a pressure-sensitive adhesive tape constructed from a thin, flexible aluminium metal foil backing coated with either an acrylic or solvent-based adhesive on one side and a protective liner on the other. The foil backing gives the tape its defining performance properties: high reflectivity, excellent thermal conductivity, a complete barrier against moisture vapour transmission, and an inherent resistance to flame and heat that no plastic-backed tape can match.
Unlike cloth duct tape or BOPP packaging tapes, aluminium foil tape doesn't rely on the tape backing to merely hold a surface together — it creates a metallised, airtight, vapour-proof seal. That's why it's the material of choice for HVAC duct sealing, insulation joint seaming, and any application where the tape needs to perform as part of a thermal or vapour barrier system, not just a temporary fix.
Pioneer Tapes supplies aluminium foil tape across multiple grades and thicknesses to match the demands of different applications:
- Standard Foil Tape (55–60 Micron): Suited to general-purpose seaming, patching, and light HVAC duct sealing where moderate temperature and handling conditions apply.
- Medium-Duty Foil Tape (70–80 Micron): The most widely specified grade for professional HVAC installations — thicker foil for better conformability on duct joints, stronger adhesion under sustained temperature cycling, and improved resistance to mechanical handling during installation.
- Heavy-Duty Foil Tape (130 Micron): For demanding industrial applications, high-temperature environments, electroplating masking, and applications requiring maximum puncture resistance and vapour barrier performance.
- We offer tapes in a wide range of specifications, and can match them to your exact requirements to ensure they align perfectly with your system design and application conditions.
Key Features
- Flame Retardant & Vapour-Proof Barrier: Aluminium foil tape forms a continuous, non-porous metallic barrier that blocks both vapour transmission and supports flame-retardant performance requirements — critical for HVAC duct sealing in commercial buildings, industrial facilities, and residential installations where building codes require it.
- High and Low Temperature Performance: Pioneer's foil tape maintains adhesion and barrier integrity across a wide service temperature range — performing reliably in freezer room ducting, cold-store insulation, and high-temperature industrial environments alike. The foil backing doesn't soften, shrink, or delaminate under thermal cycling the way plastic-backed tapes do.
- Excellent Adhesion on Metal & Smooth Surfaces: The pressure-sensitive acrylic or solvent adhesive bonds immediately and permanently to clean aluminium duct surfaces, galvanised steel, rigid insulation boards, and most smooth substrates on first contact. No primer required for standard applications on clean, dry surfaces.
- Moisture & Humidity Resistance: The aluminium foil backing is inherently impermeable to water vapour. In HVAC and insulation applications, this prevents condensation migration through duct joints and insulation seams — eliminating the moisture ingress that causes insulation degradation and mould growth over time.
- Conformable on Irregular & Curved Surfaces: Despite being a metal-backed tape, aluminium foil tape is thin and flexible enough to conform to duct bends, curved pipe insulation, and irregular joint geometries without cracking or lifting at edges. The lighter gauges (55–70 micron) are particularly conformable for complex duct shapes and fittings.
- Reflective Surface — Thermal Efficiency Benefit: The bright metallic surface reflects radiant heat, contributing to the thermal efficiency of insulated duct systems by reducing heat absorption from the surrounding environment. In HVAC applications, this isn't just a material property — it has a measurable impact on system energy performance.
- Strong Initial Tack — Permanent Long-Term Bond: Foil tape needs to grip immediately during installation so the installer can move on without waiting for cure time, and then maintain that bond permanently under years of thermal cycling and mechanical vibration. Pioneer's adhesive formulation delivers both — immediate tack and durable long-term adhesion.
- Available from 55 Micron to 130 Micron Thickness: The right thickness depends on your application's mechanical demands, temperature range, and handling conditions. Pioneer stocks the full range and advises on grade selection for each application type — from light residential HVAC work to heavy industrial installations.
- Available in Standard & Custom Widths: Standard widths of 25mm, 50mm, 75mm, and 100mm cover the vast majority of HVAC and insulation seaming applications. Custom widths and slit rolls are available for industrial, electroplating masking, and OEM manufacturing requirements.
Applications of Aluminium Foil Tape
HVAC Duct Sealing & Joint Seaming
The primary application of aluminium foil tape in the HVAC industry is sealing joints, seams, and connections in sheet metal duct systems. Air conditioning and ventilation ducts run under sustained positive or negative pressure, meaning any unsealed joint becomes an air leakage point — reducing system efficiency, increasing energy consumption, and creating condensation problems inside the duct cavity. Aluminium foil tape for HVAC creates a permanent, pressure-resistant, airtight seal at every joint.
Applications include:
- Sealing longitudinal seams on rectangular and round sheet metal ducts
- Seaming duct sections at connections and transitions
- Sealing penetrations, damper frames, and access panel edges
- Patching mechanical damage or pinhole defects in existing duct surfaces
- Sealing flexible duct connections to rigid duct collars and terminal boxes
In commercial and industrial insulation applications, aluminium foil tape is used to seam the foil-faced insulation jacket that covers ductwork, pipework, and equipment. The tape must bond reliably to the foil facing, maintain its seal through the expansion and contraction of the insulated surface underneath, and form a continuous vapour barrier across the insulation system. A gap or lifted edge in the foil tape at an insulation joint is a vapour ingress point — and vapour ingress degrades insulation performance rapidly.
Insulation seaming applications include:
- Seaming foil-faced glass wool and mineral wool duct insulation
- Joining sections of closed-cell foam pipe insulation with foil facing
- Vapour barrier continuity sealing at penetrations and terminations
- Insulation repair and patching on existing systems
Cold Room, Refrigeration & Chiller Ducting
Cold-chain facilities, refrigerated warehouses, and commercial kitchen ventilation systems present a specific challenge for duct sealing tape: the tape must perform at sustained low temperatures where many adhesives lose tack, while also managing the condensation risk that comes with large temperature differentials across duct walls. Pioneer's aluminium foil tape for insulation maintains adhesion at low service temperatures and creates the vapour-tight seal that prevents condensation from forming within the duct or insulation cavity.
Electroplating Masking & Protective Covering
Outside HVAC, one of the significant industrial applications of heavy-duty aluminium foil tape is electroplating masking. During electroplating, anodising, and chemical surface treatment processes, specific areas of metal components must be masked to prevent coating application. Aluminium foil tape — particularly the 80 micron and 130 micron grades — provides chemical resistance, temperature resistance, and precise edge definition for masking complex component geometries during surface treatment.
General Purpose Seaming, Patching & Repair
Aluminium foil tape is a versatile industrial repair and seaming material beyond its HVAC primary application. It is used for
- Patching tears, holes, and damage in foil-faced insulation systems,
- Sealing around pipe penetrations through insulated walls and ceilings,
- Reflective heat shielding in engine bays, exhaust routing, and industrial equipment,
- Temporary or permanent patching of metallic surfaces in industrial maintenance
- Vapour barrier repair in building fabric applications.
Thermal Masking in Manufacturing & Finishing
In manufacturing processes involving high temperatures — powder coating, oven curing, heat treatment, and industrial painting — aluminium foil tape is used to mask components and surfaces that must be protected from heat, chemicals, or coating application. The foil backing reflects radiant heat and the adhesive maintains bond integrity through the thermal cycle, unlike paper-based masking tapes which can char, blister, or leave residue at elevated temperatures.
Who Uses Pioneer Aluminium Foil Tape?
HVAC Contractors & MEP Consultants
HVAC installation and commissioning teams specify aluminium foil tape as the standard sealing material for sheet metal duct systems across commercial, industrial, and residential projects. MEP (mechanical, electrical, plumbing) consultants writing project specifications typically mandate foil tape — not cloth duct tape — for duct joint sealing on projects that need to meet building energy performance standards. Pioneer supplies HVAC foil tape in project quantities with consistent quality across every roll.
Insulation Contractors & Building Services
Mechanical insulation contractors insulating ductwork, pipework, and equipment in commercial buildings, industrial plants, and cold-chain facilities use aluminium foil tape as the primary seaming material for foil-faced insulation systems. The tape's vapour barrier performance is as important as its adhesive strength in this context — every seam and joint must contribute to a continuous, unbroken vapour control layer.
Industrial Facilities & Manufacturing Plants
Manufacturing facilities with process heating, cooling, or ventilation systems rely on industrial foil tape for duct maintenance, insulation repair, and thermal masking in production environments. Heavy-duty grades are the standard specification for industrial HVAC systems running at higher static pressures and more demanding temperature cycles than commercial building systems.
Refrigeration & Cold Chain Operations
Cold storage facilities, food processing plants, pharmaceutical cold rooms, and refrigerated transport operators need foil tape that maintains adhesion and vapour-tightness at sustained low temperatures. Pioneer's foil tape grades are specified for cold-chain HVAC applications across these sectors, where tape failure means a compromised vapour barrier and expensive insulation remediation.
Electroplating & Surface Treatment Facilities
Metal finishing operations — electroplating, anodising, chemical etching, and powder coating — use heavy-duty aluminium foil tape for component masking. The chemical resistance, temperature tolerance, and mechanical strength of 80–130 micron foil tape grades make them the reliable choice for protecting surfaces that must remain uncoated through aggressive treatment processes.
Construction & Building Contractors
Building contractors working on new construction and retrofit projects use aluminium foil tape for a range of building services applications — vapour barrier seaming in roof and wall assemblies, duct system installation and repair, and reflective heat shielding in roof spaces. The tape's reflective surface and vapour barrier properties make it a functional building material, not just an installation consumable.
Technical Specifications
Note: Values marked with * are indicative of standard industry ranges. Verified data available on request for specific grades.
| Parameter | Specification |
| Backing Material | Aluminium Foil (bright finish, single-sided) |
| Adhesive Type | Acrylic (pressure-sensitive) / Solvent-based (grade-dependent) |
| Available Thickness | 55 Micron / 60 Micron / 70 Micron / 80 Micron / 130 Micron |
| Standard Width Options | 25mm / 50mm / 75mm / 100mm (custom widths available) |
| Length per Roll | As per requirement; standard and custom lengths available |
| Tensile Strength* | ≥ 40 N/25mm (longitudinal) — verify with Pioneer per grade |
| Adhesion Strength* | ≥ 5 N/25mm (stainless steel) — verify per adhesive grade |
| Temperature Resistance* | Service range: -40°C to +120°C (standard grades); higher for specialist grades |
| Vapour Transmission | Nil — aluminium foil backing provides complete vapour barrier |
| Flame Retardancy | Flame retardant — foil backing does not support combustion |
| Moisture Resistance | Excellent — foil backing impermeable to water and water vapour |
| Reflectivity | High — bright aluminium surface reflects radiant heat |
| Application Surfaces | Aluminium duct, galvanised steel, rigid insulation board, foil-faced insulation |
| Shelf Life | 12–18 months (stored at 25°C / 50% RH, away from direct sunlight) |
| Core Size | 1 inch / 3 inch |
Why Choose Pioneer Tapes?
- Application-Specific Grade Guidance: Specifying the wrong foil tape thickness for an application — using a 55 micron general-purpose grade on a high-static-pressure industrial duct system, for example — results in edge lifting, adhesive failure, and a callback job. Pioneer's team understands foil tape performance requirements across different HVAC, insulation, and industrial contexts, and recommends the right grade for your specific conditions before you place an order.
- Pune-Based Manufacturer, Pan-India Supply: Manufacturing in Pune with supply capability across India gives Pioneer Tapes the combination of shorter lead times for Maharashtra-region contractors and reliable nationwide delivery for HVAC, insulation, and industrial clients across other states. Local manufacturing also means faster response to urgent or large-project volume requirements.
- Full Thickness Range Under One Roof: From 55 micron light-duty foil tape through to 130 micron heavy-duty industrial grade, Pioneer stocks the complete thickness range for aluminium foil tape — eliminating the need to manage multiple suppliers for different project specifications. One supplier, one quality standard, one point of contact.
- Custom Widths & Slit Rolls for Industrial Requirements: Standard 25mm to 100mm widths cover most HVAC and insulation applications. For industrial masking, OEM manufacturing, and specialist seaming requirements, Pioneer supplies custom-slit foil tape rolls to the exact width needed — reducing waste and improving application precision on the job.
- Bulk Supply for Contractors & Facility Managers: Whether you're a mechanical insulation contractor working across multiple simultaneous projects or a facility maintenance team managing ongoing HVAC upkeep, Pioneer handles bulk aluminium foil tape orders with consistent product quality, scheduled supply, and dedicated account management to keep your inventory stocked without manual reordering.
- Consistent Quality Roll to Roll: Foil tape that varies in adhesive coat weight or foil thickness between rolls creates real problems on installation — inconsistent bonding, varying conformability, and unpredictable performance under service conditions. Pioneer's manufacturing process ensures uniform foil gauge and adhesive application across every roll in every order. What you evaluate in the sample is what arrives in bulk.
- Trusted by Multinational Companies: Today, we're proud to support a wide range of multinational companies with our solutions — including HVAC manufacturers, insulation contractors, and industrial facilities operating across India and internationally. Our quality standards are built to meet the expectations of global procurement teams.
Aluminium foil tape is used primarily for HVAC duct sealing, insulation joint seaming, and vapour barrier applications. It is the standard tape specified for sealing sheet metal duct joints in air conditioning and ventilation systems because it creates an airtight, vapour-proof, flame-retardant seal that cloth duct tape or BOPP packaging tape cannot match. Beyond HVAC, it is also used for thermal masking in manufacturing processes, electroplating component masking, cold-room and refrigeration duct sealing, insulation repair, and reflective heat shielding in industrial applications.
Yes — and this is one of the key properties that distinguishes it from plastic-backed tapes. The aluminium foil backing does not soften, deform, or shrink under heat. Pioneer's standard foil tape grades maintain adhesion and barrier performance up to approximately 120°C in continuous service, with specialist grades available for higher temperature applications. At the other end of the scale, foil tape also maintains adhesion at low temperatures (down to -40°C for most grades), making it suitable for cold-chain and refrigeration ducting applications as well.
Standard grey cloth duct tape uses a fabric backing with rubber adhesive — it's a general-purpose tape with reasonable short-term adhesion but poor long-term performance under thermal cycling, UV exposure, and sustained pressure. It is not vapour-proof, not flame retardant, and typically not compliant with building codes that specify foil tape for HVAC duct sealing. Aluminium foil tape uses a metallic foil backing that creates a genuine vapour barrier, reflects heat, and maintains adhesion through years of thermal cycling. For HVAC and insulation applications, foil tape is the technically correct specification — not a premium alternative to duct tape.
Thickness selection depends on the mechanical demands and temperature conditions of your application. 55–60 micron is suitable for general-purpose seaming, light-duty HVAC residential work, and insulation patching. 70–80 micron is the most commonly specified range for professional commercial and industrial HVAC duct sealing — it offers better conformability on complex duct shapes and more robust adhesion under sustained temperature cycling. 130 micron heavy-duty grade is used for industrial applications, electroplating masking, high-pressure duct systems, and environments where the tape will be subject to mechanical handling after application. Share your application details with Pioneer's team and we'll confirm the right grade.
Yes. Pioneer's aluminium foil tape maintains adhesion and vapour barrier performance at the sustained low service temperatures found in cold rooms, freezer stores, and refrigerated process areas. This is important because vapour barrier continuity is critical in cold-chain insulation — any gap or lifted seam at an insulation joint allows warm, moist air to migrate into the insulation cavity, causing condensation, insulation degradation, and over time, structural moisture damage. Specify the appropriate grade based on your minimum service temperature and we'll confirm suitability.
Yes. In addition to standard widths of 25mm, 50mm, 75mm, and 100mm, Pioneer Tapes supplies custom-slit aluminium foil tape rolls to specific widths for industrial masking, OEM manufacturing, and specialist seaming applications. Custom slit rolls reduce material waste and improve application precision on jobs where standard widths don't match the geometry being sealed or masked. Contact us with your required width, thickness, and volume and we'll advise on production lead times and minimum order quantities.
Yes. Pioneer Tapes supplies aluminium foil tape in bulk to HVAC contractors, mechanical insulation companies, industrial facilities, and building contractors across India. Large project orders are handled with dedicated account support and consistent grade quality across every supply consignment. If you're managing a project with specific delivery staging requirements or ongoing site supply needs, our team will structure a supply arrangement that keeps your teams stocked without gaps. Contact us with your project volume and schedule and we'll take it from there.
Ready to Specify the Right Foil Tape for Your Project?
Tell us about your application — the duct system type, insulation specification, service temperature range, and any custom width or thickness requirements. Pioneer Tapes will recommend the right aluminium foil tape grade and arrange samples before you commit to a project or bulk order.
No guesswork. No overselling. Just the right tape specification, backed by expert guidance from a manufacturer who understands what HVAC, insulation, and industrial teams actually need from their sealing materials.
Contact Pioneer Tapes today — request a sample, get a bulk quote, or speak with our technical team.
