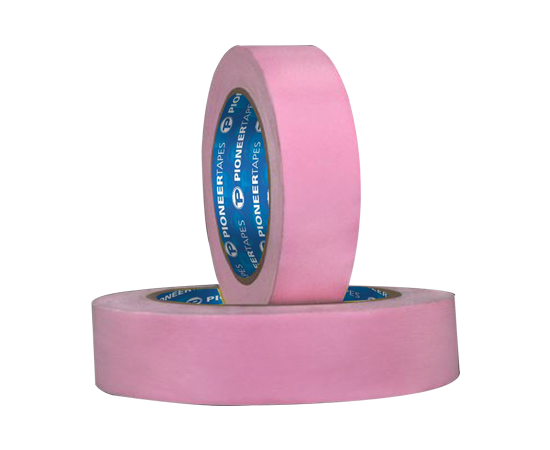

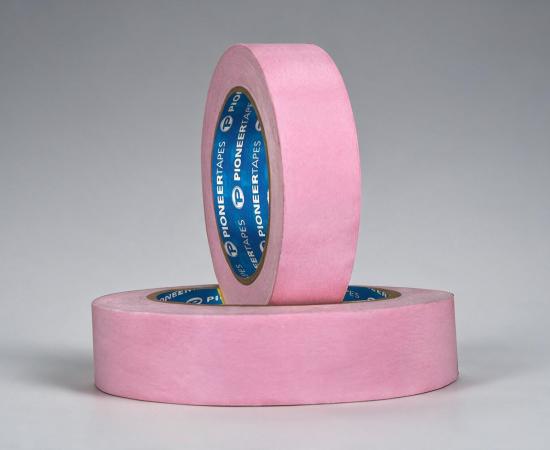

Pink Woven Polyester Fabric Tape for Wire Harness & Electrical Insulation
Built to wrap, insulate, and hold — under heat, vibration, and the demands of a wire harness line.
Wire harness wrapping isn't just a bundling task — it's an insulation, abrasion-protection, and noise-dampening job all at once, performed at production-line speed and expected to hold for the life of the vehicle or equipment it's installed in. Pink woven polyester fabric tape is purpose-built for exactly this combination of requirements, giving wire harness manufacturers a tape that insulates electrically, conforms tightly around irregular bundle shapes, and resists the heat and abrasion of an engine bay or industrial enclosure.Pioneer Tapes manufactures and supplies pink woven polyester fabric tape for wire harness wrapping, electrical insulation, PCB masking, coil winding, and motor holding applications across the automotive and electrical manufacturing sectors in India. The woven polyester construction delivers genuine dielectric insulation performance alongside the tensile strength and conformability that harness wrapping demands.
As a Pune-based automotive and electrical tape manufacturer with pan-India supply capability, we help OEM harness producers and electrical component manufacturers specify the right width and grade for their specific wrapping and insulation requirements. Today, we're proud to support a wide range of multinational companies with our solutions.
What is Pink Woven Polyester Fabric Tape?
This tape is most widely known in the automotive industry as a wire harness tape — the standard material used to wrap and bundle the wiring harnesses that run throughout a vehicle, protecting individual wires from abrasion, providing electrical insulation between conductors, and dampening the vibration-induced noise (rattle) that loose wiring can create inside a vehicle cabin or engine bay. The same properties make it equally suited to general electrical insulation, PCB masking, and coil winding applications in electronics and electrical equipment manufacturing.
Pioneer Tapes manufactures pink woven polyester fabric tape to the following standard specification, with custom widths and lengths available to suit specific production line requirements:
- Base Material: Pink Woven Polyester Fabric — combining the tensile strength of polyester fibre with a woven structure that delivers flexibility and tight conformability around wrapped components.
- Adhesive System: Natural Rubber Based adhesive, delivering high initial tack for fast, reliable bonding during high-speed wire harness production.
We offer tapes in a wide range of colours, and can match them to your exact requirements to ensure they align perfectly with your branding and application needs.
Key Features
- Dielectric Insulation Performance: With a breakdown voltage of 2 KV, Pioneer's pink woven polyester fabric tape provides genuine electrical insulation performance — a critical property for wire harness wrapping and general electrical insulation applications where preventing current leakage between conductors matters.
- High Operating Temperature Resistance: Rated for continuous operation at 120°C, this tape holds its insulation and adhesion properties in the elevated temperature environments typical of engine bays, electrical enclosures, and motor housings — without degrading or losing its bond.
- High Peel Adhesion: A peel adhesion to steel of 550 gms per 25.4mm² ensures the tape grips firmly to harness components, coil windings, and electrical assemblies, holding its wrap securely through vibration and handling during and after installation.
- Genuine Tensile Strength from Woven Construction: With a tensile strength of 25 kg per 25.4mm², the woven polyester backing provides real mechanical strength for wrapping and bundling applications — standing up to the tension applied during high-speed harness wrapping processes.
- Abrasion Resistant Wrapping: The woven fabric surface resists abrasion from contact with metal edges, other wires, and vibration-induced rubbing inside a wire harness bundle — protecting individual wire insulation from wear over the life of the installation.
- Noise & Vibration Dampening (Anti-Rattle): Wrapped around loose components and cable runs, the tape's fabric construction helps dampen vibration-induced noise — a relevant property in automotive NVH (Noise, Vibration, Harshness) engineering, where unwanted rattle inside a cabin or engine bay needs to be minimised.
- Controlled Elongation for Predictable Wrapping: With a maximum elongation of 15%, the tape stretches enough to conform tightly around bundle shapes during wrapping, while maintaining dimensional stability for consistent, predictable results on automated harness wrapping equipment.
- Consistent Roll-to-Roll Quality: Manufactured to tight dimensional tolerances — length ±0.5m, width ±0.5mm — ensuring predictable performance on automated wire harness wrapping machinery, where dimensional consistency directly affects wrapping speed and quality.
Applications of Pink Woven Polyester Fabric Tape
The primary application of pink woven polyester fabric tape is wrapping automotive and industrial wire harnesses — bundling multiple wires together, protecting them from abrasion against each other and against surrounding components, and providing electrical insulation along the harness run. OEM harness manufacturers specify this tape specifically for its combination of dielectric strength, temperature resistance, and conformable wrapping performance.
General Electrical Insulation
Beyond wire harness wrapping, this tape is used for general electrical insulation tasks across electrical and electronics manufacturing — wherever a dielectric barrier is needed between conductive surfaces or components, supported by its 2 KV breakdown voltage rating.
PCB Masking
In printed circuit board manufacturing, pink woven polyester fabric tape is used for masking specific board areas during soldering, coating, or finishing processes — protecting components and contact points that must remain free of coating or solder contamination during production.
Coil Winding
Motor and transformer manufacturers use this tape during coil winding processes, where its conformability and insulation properties help secure and insulate windings as they're formed — an application where consistent adhesion and dielectric performance directly affect the finished component's electrical reliability.
Holding Wires and Motors
The tape's high peel adhesion and tensile strength make it suitable for general holding applications involving wires and motor components during assembly — securing parts in position, bundling cable runs, and providing temporary or semi-permanent holding during multi-stage assembly processes.
Automotive NVH & Anti-Rattle Applications
Automotive manufacturers use fabric-backed wrapping tape to dampen noise and vibration from loose wiring and components inside vehicle cabins and engine bays — an application area that has grown in importance as NVH (Noise, Vibration, Harshness) performance has become a more significant factor in vehicle quality perception.
Who Uses Pioneer Pink Woven Polyester Fabric Tape?
Vehicle manufacturers and dedicated wire harness producers use pink woven polyester fabric tape as a standard material for harness wrapping across production lines, valuing its combination of insulation performance, temperature resistance, and conformability around complex harness routing.
Electrical & Electronics Component Manufacturers
Manufacturers of motors, transformers, and electrical components use this tape for coil winding, general insulation, and PCB masking — applications where dielectric performance and consistent adhesion directly affect product quality and electrical reliability.
Automotive Tier 1 & Tier 2 Suppliers
Component suppliers manufacturing wiring harnesses and electrical sub-assemblies for OEM vehicle production use this tape to meet automotive industry specifications for insulation, temperature resistance, and NVH performance in their delivered components.
Industrial Motor & Equipment Manufacturing
Manufacturers of industrial motors and electrical equipment use pink woven polyester fabric tape for coil winding and general wire holding applications, where the tape's tensile strength and insulation properties support reliable equipment assembly.
PCB & Electronics Assembly Operations
Printed circuit board manufacturers and electronics assembly operations use this tape for masking during production processes, protecting sensitive board areas through soldering, coating, and finishing stages.
Technical Specifications
| Parameter | Specification |
| Base Material | Pink Woven Polyester Fabric |
| Adhesive Type | Natural Rubber Based |
| Total Thickness | 230 Micron (±20) |
| Peel Adhesion to Steel | 550 gms / 25.4mm² |
| Tensile Strength | 25 kg / 25.4mm² |
| Breakdown Voltage | 2 KV |
| Operating Temperature | 120°C |
| Elongation | 15% Maximum |
| Available Colour | White (standard); pink fabric base — custom colours on request |
| Width | As required (custom widths available) |
| Length | As required (custom lengths available) |
| Dimensional Tolerance | Length: ±0.5m | Width: ±0.5mm |
| Shelf Life | 12–18 months (stored at 25°C / 50% RH, away from direct sunlight) |
| Core Size | 1 inch / 3 inch |
Why Choose Pioneer Tapes?
- Built for OEM Wire Harness Specifications: Wire harness wrapping tape needs to meet specific dielectric, temperature, and tensile requirements that automotive OEMs and Tier 1 suppliers depend on for component reliability. Pioneer's pink woven polyester fabric tape is manufactured to consistent specifications that support these demanding production requirements.
- Pune-Based Manufacturer, Pan-India Supply: Manufacturing in Pune with nationwide supply capability gives Pioneer Tapes shorter lead times for Maharashtra-region automotive and electrical manufacturers, and dependable delivery for OEM and Tier 1/2 supplier clients across other states.
- Consistent Dielectric & Tensile Performance: Wire harness tape that varies in breakdown voltage or tensile strength between rolls creates real reliability risk in automotive electrical systems. Pioneer's controlled manufacturing process ensures the same 2 KV breakdown voltage and 25 kg/25.4mm² tensile strength across every roll in every order.
- Custom Widths & Lengths to Match Your Line: Beyond standard roll formats, Pioneer manufactures pink woven polyester fabric tape to the specific width and length required for automated wire harness wrapping equipment, reducing waste and improving wrapping consistency.
- Bulk Supply for Automotive & Electrical Manufacturers: Whether you're an OEM wire harness producer or an electrical component manufacturer, Pioneer handles bulk orders with consistent quality, scheduled supply, and dedicated account support to keep production lines running without supply gaps.
- Tight Dimensional Tolerances for Automated Lines: Manufactured to ±0.5m length and ±0.5mm width tolerances, Pioneer's tape performs predictably on automated wire harness wrapping machinery — where dimensional consistency directly affects wrapping speed and finished harness quality.
- Trusted by Multinational Companies: Today, we're proud to support a wide range of multinational companies with our solutions — including automotive OEMs and Tier 1 suppliers who depend on consistent insulation and wrapping performance across their production volumes.
Frequently Asked Questions
Pink woven polyester fabric tape is primarily used for wire harness wrapping in automotive and industrial applications, where it bundles wires together, protects them from abrasion, and provides electrical insulation. It's also used for general electrical insulation, PCB masking during circuit board manufacturing, coil winding in motor and transformer production, and holding wires and motor components during assembly.
Breakdown voltage measures the maximum voltage the tape's insulation can withstand before electrical current passes through it — essentially, its dielectric strength. Pioneer's pink woven polyester fabric tape has a breakdown voltage of 2 KV, meaning it provides reliable electrical insulation up to that voltage threshold, which is why it's specified for wire harness wrapping and general electrical insulation applications where preventing current leakage between conductors is essential.
Yes. Pioneer's pink woven polyester fabric tape is rated for continuous operation at 120°C, making it suitable for the elevated temperature environments typically found in engine bays, motor housings, and electrical enclosures. It maintains its insulation and adhesion properties at this operating temperature without degrading.
Yes — this is a recognised secondary benefit of fabric-backed wire harness wrapping tape. By securing and dampening loose wiring and components, the tape helps reduce the vibration-induced noise (rattle) that can otherwise develop inside a vehicle cabin or engine bay over time. This makes it relevant to automotive NVH (Noise, Vibration, Harshness) engineering considerations, alongside its primary insulation and bundling function.
Yes. With a tensile strength of 25 kg per 25.4mm² and tight dimensional tolerances of ±0.5m on length and ±0.5mm on width, Pioneer's tape performs predictably on automated wire harness wrapping equipment, where consistent dimensions and tensile performance directly affect wrapping speed and quality on the production line.
Yes. Pioneer manufactures this tape in custom widths and lengths to match specific wire harness wrapping equipment and production line requirements, maintained to tight dimensional tolerances. Share your required width, length, and order volume with our team and we'll confirm production lead times.
Yes. Pioneer Tapes supplies pink woven polyester fabric tape in bulk to automotive OEMs, Tier 1 and Tier 2 suppliers, and electrical component manufacturers across India. Bulk orders are handled with dedicated account support, consistent dielectric and tensile performance across every supply batch, and scheduling to fit your production timelines. Contact us with your volume requirements and specification details and we'll structure a supply arrangement accordingly.
