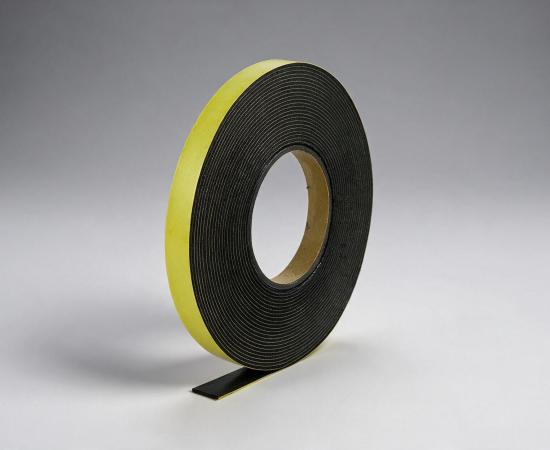

Foam Mounting Tape



Acrylic Foam Tape for Automotive, Structural & Industrial Bonding

A permanent bond that replaces the rivet, the weld, and the screw — without the limitations of any of them.

Mechanical fasteners — rivets, screws, welds, brackets — have limitations that every design and manufacturing engineer knows: stress concentration at the fixation point, visible marks on the surface, dissimilar-material bonding constraints, added component weight, and the labour cost of the fastening process itself. Acrylic foam tape is what happens when high-performance adhesive science resolves all of these limitations simultaneously: a thick, conformable foam core saturated with acrylic polymer adhesive that bonds across the full contact area rather than at a point, distributes load uniformly, absorbs vibration, seals the joint against moisture and air, and does it all invisibly.
Pioneer Tapes manufactures and supplies acrylic foam tape for emblems, body side mouldings, ACP panel mounting, signage assembly, structural glazing, and a wide range of industrial and construction bonding applications across India. Available from 0.4mm to 3mm thickness, in Clear, Grey, Black, and White, and in both roll and die-cut formats, our acrylic foam tape range covers the full spectrum of high-performance bonding requirements.

As a Pune-based acrylic foam tape manufacturer with pan-India supply capability, we help automotive OEMs, signage fabricators, construction firms, and industrial manufacturers select the right thickness, colour, and cut format for their specific bonding application. Today, we're proud to support a wide range of multinational companies with our solutions.


What is Acrylic Foam Tape?

Acrylic foam tape — also commonly referred to as VHB (Very High Bond) tape in the industry — is a double-sided adhesive tape built from a closed-cell acrylic foam core that serves simultaneously as the carrier, the adhesive, and the sealant. Unlike standard double-sided tapes with a thin film carrier, the foam core of acrylic foam tape is thick and conformable, giving it properties that ordinary tapes simply cannot replicate: it bonds across an entire surface area rather than at discrete points, it absorbs and dampens mechanical vibration and shock, it creates a sealed joint against moisture and air ingress, and it accommodates micro-movement and differential thermal expansion between bonded materials.
The acrylic polymer chemistry of the foam delivers exceptional long-term bond durability — resisting UV exposure, weathering, temperature cycling, solvents, and humidity at a level that other adhesive systems can't match over extended service periods. This is what allows acrylic foam tape to serve as a genuine structural fastening solution — not a supplement to mechanical fasteners, but in many applications a complete replacement for them.

Pioneer Tapes supplies acrylic foam tape across thickness grades and colours suited to the full range of automotive, construction, signage, and industrial applications:

• Thickness Range 0.4mm to 3mm: Thinner grades (0.4–0.8mm) suit tight-gap applications like emblem and badge mounting; medium grades (1.0–1.6mm) are standard for ACP panel mounting and general structural bonding; thicker grades (2.0–3.0mm) accommodate larger surface irregularities and provide maximum vibration dampening.



• Available in Clear, Grey, Black & White: Colour selection allows the tape to be visually matched to the application — black for dark substrates, clear for transparent or light-coloured assemblies, grey for metal and automotive applications, white for architectural and interior signage.



• Roll & Die-Cut Formats: Both roll stock and custom die-cut shapes are available — die-cuts are widely used in automotive and electronics assembly where consistent, precise tape placement across high production volumes demands pre-cut shapes rather than manual roll application.

We offer acrylic foam tape in a wide range of thicknesses, colours, and formats, and can match them to your exact bonding geometry and application requirements.


Key Features



• Replaces Mechanical Fasteners — No Drilling, No Welding: Acrylic foam tape bonds across the full contact area of a joint, distributing load uniformly and eliminating the stress concentrations that rivets and screws create at their fixation points. For many bonding applications, it is a complete, code-approved substitute for mechanical fastening — delivering a cleaner result with less labour.



• Permanent, High-Strength Structural Bond: The acrylic polymer foam forms an extraordinarily durable bond that resists shear, peel, and tensile stress under sustained load — maintaining structural performance across years of thermal cycling, UV exposure, vibration, and weathering that would degrade conventional adhesives.



• Conforms to Surface Irregularities: The conformable foam core makes full contact across uneven, textured, or lightly contoured surfaces — bonding to areas that a rigid tape or direct adhesive application would leave unbonded, and filling small gaps and surface variations to create a complete, uniform bond across the joint.



• Vibration & Shock Dampening: The viscoelastic foam core absorbs and dissipates mechanical vibration and impact energy, protecting bonded components from fatigue failure due to resonance or shock — a key performance benefit in automotive and HVAC applications where vibration is a constant condition of service.



• Waterproof & Moisture-Sealed Joint: The continuous foam bond creates a sealed joint that prevents moisture, air, and contaminant ingress at the bond line — eliminating the capillary paths between substrate surfaces that corrosion and contamination exploit over time.



• Outstanding UV & Weather Resistance: The acrylic polymer chemistry resists UV degradation, oxidation, and weathering better than virtually any other common adhesive chemistry — maintaining bond strength in outdoor applications over multi-year service periods where rubber or hot melt adhesives would degrade significantly.



• Handles Differential Thermal Expansion: When two different materials are bonded — aluminium to glass, steel to plastic, ACP panel to concrete — they expand and contract at different rates with temperature change. The flexible foam core accommodates this differential movement elastically rather than transmitting it as stress to the bond interface, which is why acrylic foam tape succeeds in these dissimilar-material applications where rigid adhesives fail.



• Available 0.4mm to 3mm Thickness, Rolls & Die-Cuts: The full thickness range, multiple colours, and both roll and die-cut formats mean Pioneer's acrylic foam tape covers automotive OEM emblem work, signage panel mounting, ACP cladding installation, and general structural bonding from a single supply source.



Applications of Acrylic Foam Tape

Automotive Emblems, Badges & Body Side Mouldings

This is the primary automotive application of acrylic foam tape. Vehicle manufacturers and body shops use acrylic foam tape — typically in die-cut shapes matched to individual emblem and trim geometries — to mount badges, emblems, and body side mouldings to painted vehicle surfaces. The tape creates a permanent bond that handles the vibration, temperature cycling, and car-wash conditions of automotive service without lifting, while the die-cut format ensures precise, consistent placement across production volume.

Automotive Trim & Interior Panel Mounting

Beyond exterior emblems, acrylic foam tape is used throughout vehicle interiors for mounting trim panels, speaker grilles, dashboard components, and interior mouldings — applications where a vibration-dampening bond that holds securely through years of road driving without rattling is the specification requirement.

ACP Panel & Façade Cladding Installation

Aluminium composite panel (ACP) cladding — used extensively in commercial building facades, retail fit-outs, and architectural finishing — is fixed with structural-grade acrylic foam tape. The tape handles the differential thermal expansion between the aluminium composite panel and the building structure it's mounted to, maintains a waterproof sealed bond at the fixation line, and eliminates the visible mechanical fasteners that rivets and screws would otherwise require.

Signage Mounting & Display Assembly

Sign fabricators and display manufacturers use acrylic foam tape to mount aluminium, acrylic, and composite signage panels — to building facades, interior walls, retail displays, and exhibition structures. The tape creates a clean, fastener-free mounting that suits high-specification signage work where visible fixings would compromise the finished appearance.

Structural Glazing & Window Bonding

Structural glazing applications in commercial construction use high-performance acrylic foam tape to bond glass panels to aluminium frames — a demanding application that requires permanent, weather-resistant, load-bearing adhesion that conventional tape adhesives cannot sustain. Structural-grade acrylic foam tape meets these requirements while also sealing the glass-to-frame joint against moisture infiltration.

HVAC Equipment & Industrial Assembly

HVAC units, industrial enclosures, and manufactured equipment assemblies use acrylic foam tape to bond and seal panels, trim, and components — replacing welded or riveted fixings in locations where vibration dampening and moisture sealing are as important as bond strength.

Mirror & Glass Mounting

Mirrors, decorative glass panels, and display glass are bonded with acrylic foam tape across automotive, retail, and interior design applications — where the tape's combination of high bond strength, controlled foam thickness, and transparent or colour-matched options suit the visible-finish requirements of these applications.


Who Uses Pioneer Acrylic Foam Tape?

Automotive OEMs & Tier 1/2 Suppliers

Vehicle manufacturers and automotive component suppliers use acrylic foam tape for emblems, body mouldings, trim panels, and interior components — specifying die-cut formats for production-line consistency and high-volume throughput.

Signage Fabricators & Display Manufacturers

Sign makers and retail display fabricators use acrylic foam tape for panel mounting across a wide range of materials and installation environments, valuing its combination of bond strength, clean fastener-free appearance, and UV resistance for outdoor-rated installations.

Construction, Façade & Cladding Contractors

ACP cladding installers and commercial construction contractors use structural-grade acrylic foam tape for façade panel fixing, structural glazing, and architectural bonding applications where load-bearing, weather-resistant adhesion is the specification requirement.

HVAC & Building Services Manufacturers

HVAC unit manufacturers and building services companies use acrylic foam tape for panel bonding, trim mounting, and vibration-dampening assembly in equipment that is subject to continuous mechanical vibration during operation.

Electronics & Consumer Appliance Manufacturers

Electronics and appliance manufacturers use acrylic foam tape for display mounting, panel bonding, and assembly applications where a thin, permanent, cleanly applied bond suits the tight tolerances and finish standards of consumer product manufacturing.

Industrial Equipment & General Manufacturing

Manufacturing operations across multiple sectors use acrylic foam tape as a structural fastening solution for bonding dissimilar materials, mounting components without visible fixings, and sealing joints in assembled equipment.


Technical Specifications

Note: Values marked with * are indicative of standard industry ranges. Verified data available on request for specific grades.


Parameter	Specification
Core Material	Closed-Cell Acrylic Foam (100% acrylic polymer construction)
Adhesive Type	Acrylic (integral — foam core acts as carrier and adhesive)
Available Colours	Clear, Grey, Black, White
Thickness Range	0.4mm to 3.0mm (grade-dependent)
Width	As required (standard and custom widths available)
Format	Roll stock & custom die-cuts available
Tensile Strength*	High — varies by thickness and grade; verify with Pioneer
Shear Strength*	High structural shear — suitable for load-bearing bonding applications
Temperature Resistance*	Service range: -40°C to +90°C (standard grades)
UV Resistance	Excellent — acrylic foam resists UV degradation over multi-year outdoor service
Moisture Resistance	Excellent — forms a continuous sealed joint against water and humidity ingress
Vibration Dampening*	High — viscoelastic foam core absorbs and dissipates vibration and shock
Differential Movement	Accommodates thermal expansion differential between dissimilar bonded materials
Shelf Life	12–24 months (stored at 21°C / 50% RH, away from direct sunlight)



Why Choose Pioneer Tapes?



• Right Thickness & Colour for Your Bonding Geometry: Choosing the right foam thickness is not a minor decision — it affects gap fill, conformability, bond area, and the visual appearance of the joint. Pioneer's team reviews your substrate types, gap tolerance, loading conditions, and appearance requirements before recommending the right grade and format, so the bond performs correctly and looks right.



• Pune-Based Manufacturer, Pan-India Supply: Manufacturing in Pune with nationwide supply capability gives Pioneer Tapes shorter lead times for Maharashtra-region automotive, construction, and signage clients, and dependable delivery for OEM and industrial customers across other states.



• Full Thickness Range 0.4mm to 3mm: From ultra-thin emblem mounting tape to thick structural foam tape for ACP panel bonding, Pioneer's range covers the complete thickness spectrum from one manufacturer — eliminating the need to source different grades from multiple suppliers.



• Roll Stock & Custom Die-Cuts: Both roll format and custom die-cut shapes are available, supporting everything from manual roll application on small volumes to precision die-cut formats for high-volume automotive OEM and electronics assembly production lines.



• Bulk Supply for OEM & Construction Operations: Whether you're an automotive OEM running high-volume emblem assembly or a façade contractor managing ACP cladding across multiple project sites, Pioneer handles bulk acrylic foam tape orders with consistent quality, scheduled supply, and dedicated account support.



• Consistent Bond Strength Across Every Roll: Acrylic foam tape that varies in foam density or adhesive coat weight between batches creates unpredictable bond strength — a genuine quality risk in structural and automotive applications. Pioneer's controlled manufacturing process ensures consistent performance across every roll and every die-cut batch.



• Trusted by Multinational Companies: Today, we're proud to support a wide range of multinational companies with our solutions — including automotive OEMs, signage manufacturers, and construction contractors who depend on consistent structural bonding performance at scale.



Frequently Asked Questions
