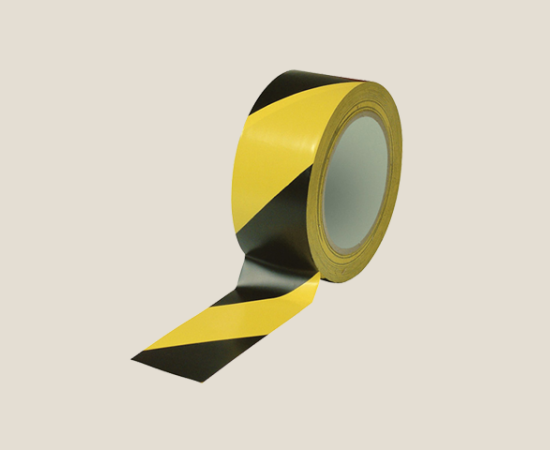

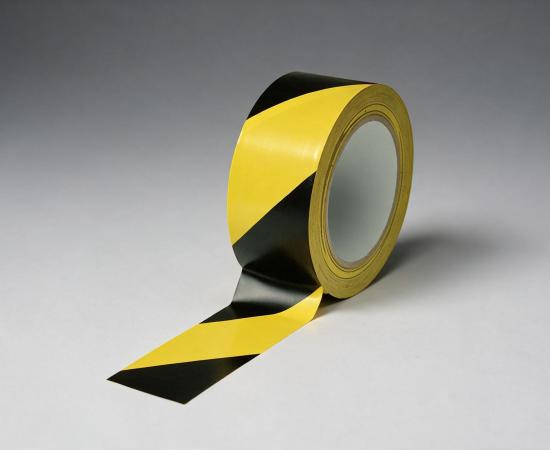

Floor Marking Tape, Heavy Duty Floor Marking Tape

Industrial Floor Marking Tape for Warehouse Safety & 5S Compliance

  A forklift path that isn't clearly marked is a near-miss waiting to happen. A hazard zone without high-visibility demarcation is a liability. A 5S programme that uses paint instead of tape means weeks of downtime whenever the layout needs to change. Industrial floor marking tape solves all three problems: applied directly to the floor surface, it creates highly visible, colour-coded lane and zone markings that communicate traffic rules, safety requirements, and operational boundaries to every person in the facility — without shutting down the floor to repaint.

Pioneer Tapes manufactures and supplies heavy duty floor marking tape for industrial areas — warehouses, manufacturing plants, logistics facilities, automotive workshops, and any operation where floor organisation, safety demarcation, and visual management are part of the facility's operating system. Available in ISO standard colours across Black, Red, Green, Blue, Yellow, Zebra pattern, Black and White; available in various widths and lengths; with options including glow-in-the-dark grades for low-light environments.

As a Pune-based industrial tape manufacturer with pan-India supply capability, we help facility managers, EHS teams, and 5S coordinators select the right tape colour, width, and grade for their specific floor marking requirements. Today, we're proud to support a wide range of multinational companies with our solutions.


What is Industrial Floor Marking Tape?

Industrial floor marking tape is a heavy-duty adhesive tape engineered specifically for application on factory, warehouse, and facility floors — where it must survive the continuous mechanical stress of foot traffic, forklift wheels, pallet jack movement, and industrial cleaning operations that would quickly destroy a conventional tape applied to a floor surface. It is used to create highly visible floor markings that communicate traffic routes, pedestrian walkways, safety hazard zones, storage area boundaries, work station layouts, and equipment positions as part of a facility's visual management system.

What makes floor marking tape different from general adhesive tape is primarily its construction. The PVC film backing is significantly thicker and harder-wearing than standard tape film, providing resistance to abrasion, scuffing, impact, and the 'snagging' that occurs when tape edges are caught by wheel traffic. The adhesive is formulated for high initial tack and high holding power on industrial floor surfaces — including concrete, epoxy-coated floors, and painted concrete — but still removes cleanly from the surface when the marking needs to be changed or relocated, without the residue and surface damage that permanent floor paint creates.

Pioneer's floor marking tape is also known as zebra crossing tape in its alternating-stripe format, and is confirmed for use in industrial heavy-duty areas with the following core performance properties:


• Abrasion & Snagging Resistant: Resists the continuous mechanical wear of foot traffic, wheel traffic, and material handling equipment without the tape surface breaking down or the edges lifting.



• Excellent Impact & Scuff Resistant: Maintains its surface integrity and colour visibility under the impact and scuffing of daily industrial floor use — keeping lane markings clear and legible over extended service periods.



• Excellent Initial Tack, High Holding Power, Yet Removes Clean: Bonds immediately and stays firmly on the floor throughout its service life, yet removes cleanly from the surface when the marking needs to be updated — without the residue and floor damage that paint-based marking cannot avoid.

We offer floor marking tape in all ISO standard colours and in a wide range of widths and lengths to match your facility's visual management and marking requirements.


Key Features

• Heavy Duty — Built for Industrial Floor Use: Pioneer's floor marking tape is specifically designed and confirmed for use in heavy-duty industrial areas — not repurposed general tape. The PVC film thickness, adhesive system, and abrasion-resistant surface are all specified for the demands of factory and warehouse floor environments where lighter tapes fail within days.



• Abrasion & Snagging Resistant: The thick PVC film resists abrasion from foot traffic, forklift tyres, and pallet jack wheels without the tape surface wearing through or the tape edges lifting and snagging under wheel traffic — the most common failure mode for under-specified floor marking tape.



• Excellent Impact & Scuff Resistance: Maintains surface clarity, colour brightness, and physical integrity under the impact and scuffing of daily heavy industrial use — keeping lane boundaries and safety markings clearly legible across the full service life of the tape.



• High Initial Tack & Holding Power: Bonds strongly to concrete, epoxy-coated, and painted floor surfaces on application and maintains that bond through cleaning, temperature variation, and continuous traffic loading — staying flat and firmly attached throughout its service period without edge lifting or bubbling.



• Removes Clean — No Residue, No Surface Damage: Despite its high holding power, the tape removes cleanly from the floor surface when the marking needs to be updated — a critical advantage over floor paint, which requires grinding, blasting, or chemical stripping when a layout change is needed. Clean removal allows 5S and lean manufacturing floor layouts to be updated without production downtime for floor remediation.



• ISO Standard Colours — Glow-in-Dark Option Available: Available in ISO standard colours (Black, Red, Green, Blue, Yellow, Zebra, Black/White) that align with globally recognised colour-coding conventions for floor safety marking, plus a glow-in-the-dark option for facilities where low-light emergency egress marking is required.



• Vibrant Colours in Various Widths & Lengths: Stocked in a variety of vibrant colours and available in multiple standard widths and lengths to cover everything from narrow lane boundary marking to wide pedestrian walkway delineation and large-format hazard zone marking.



• Colour-Coding & Safety-Coding Applications: Specifically confirmed for both colour-coding of equipment and devices (organising and identifying production assets) and safety-coding indicating potentially hazardous areas — the two primary visual management functions that floor marking tape serves across industrial operations.



Applications of Industrial Floor Marking Tape

Forklift Traffic Lane & Pedestrian Walkway Marking

The most visible application of floor marking tape is delineating forklift traffic lanes and pedestrian walkways — the fundamental separation that prevents the most serious category of workplace accidents in warehouses and manufacturing facilities. Yellow tape is the most widely used standard for pedestrian walkways; white or yellow for traffic lanes. The tape must stay clearly visible, flat, and edge-secured under continuous forklift traffic and must be legible under all facility lighting conditions.

Traffic and pedestrian marking applications include:
• Forklift lane boundaries in warehouse aisles and loading bay areas
• Pedestrian walkway delineation through manufacturing and assembly areas
• Zebra pattern crossing zones at pedestrian/vehicle intersection points
• Loading dock edge marking and vehicle approach zone demarcation
• Corner and blind-spot awareness markers at aisle junctions

Hazard Zone & Safety Demarcation

Safety-coding of potentially hazardous areas is a confirmed application of Pioneer's floor marking tape. Red and black-yellow striped tape is used to mark exclusion zones, machine danger areas, emergency stop access zones, fire equipment access corridors, and any area where entry is restricted during equipment operation. ISO-compliant colour selection ensures that these markings align with recognised industry standards for hazard communication.

5S & Lean Manufacturing Visual Management

5S and lean manufacturing programmes use floor marking tape as the primary tool for implementing visual workplace organisation — marking the correct location of every item of equipment, every pallet position, every tool storage point, and every work station boundary. The tape's clean-removal property is what makes it the preferred tool for 5S rather than paint: when a 5S kaizen changes the layout, the tape comes up cleanly and new markings go down without any floor preparation downtime. The yellow-tag process, shadow boards, and visual factory implementations all depend on floor marking tape as the floor-level communication layer.

Storage Area & Inventory Zone Marking

Warehouse and distribution centre floor plans use colour-coded tape to mark inventory storage zones, rack base positions, overflow areas, staging areas, quarantine zones, and receiving bays — creating a permanent visual map of the floor layout that guides material handlers, stock pickers, and receiving teams without requiring posted signs or verbal instruction for every operational decision.

Equipment & Machine Boundary Marking

Manufacturing facilities mark the operational boundaries of machines, equipment swing arcs, and maintenance access zones with floor tape — indicating to nearby workers where they can safely stand, where equipment will move during operation, and where clearance must be maintained for safe equipment use. These markings directly support both daily operational safety and the machine-specific risk assessments required under workplace safety regulations.

Bundling Parts for Transportation & Storage

A less immediately obvious but confirmed application on the live page: bundling parts together for transportation and storage. Heavy-duty floor marking tape's high holding power and physical durability make it a practical bundling material for holding groups of components or products together during internal transportation and short-term storage — using the same tape that marks the floor to secure the loads moving across it.



ISO Standard Floor Marking Colours & Their Meanings

Colour	ISO / Industry Standard Meaning	Typical Application
Yellow	Pedestrian walkways, traffic lanes, general demarcation	Aisle lanes, pedestrian corridors, general zone boundaries
Red	Danger, fire safety, emergency equipment access zones	Fire extinguisher locations, emergency stop access, restricted zones
Green	Safe conditions, first aid, emergency exits	Emergency egress routes, first aid stations, safe assembly areas
Blue	Information, mandatory action, raw material zones	Raw material staging, informational zone boundaries, mandatory PPE areas
Black	Equipment positioning, work station boundaries	Machine base outlines, tool shadow board borders, work cell limits
Black/White	Aisle lanes, transit routes, traffic demarcation	Main traffic corridors, vehicle lane boundaries, pedestrian crossing zones
Zebra (Y/B)	Hazard warning, caution areas, overhead hazards	Machine exclusion zones, low-headroom warnings, caution/restricted areas
Glow-in-Dark	Emergency egress, low-light safety marking	Emergency exit routes, evacuation paths, low-light facility areas

Technical Specifications

Parameter	Specification
Backing Material	PVC (Polyvinyl Chloride) Film — heavy-duty industrial grade
Adhesive Type	Pressure-Sensitive Acrylic (high tack, high holding power)
Available Colours	Red, Yellow, Green, Blue, Black, Black/White, Zebra Pattern + Glow-in-Dark
Width Options	Various standard widths available; confirm with Pioneer team
Length per Roll	Various standard lengths available; confirm with Pioneer team
Film Thickness*	Heavy duty grade — typically 0.15–0.30mm (verify with Pioneer per grade)
Tensile Strength*	High — PVC film provides impact and scuff resistance for industrial floor use
Abrasion Resistance	Excellent — confirmed snagging and abrasion resistant for heavy industrial traffic
Floor Surfaces	Concrete, epoxy-coated, painted concrete, sealed industrial floors
Holding Power	High — remains firmly bonded under continuous traffic and cleaning
Removability	Removes cleanly from surface — confirmed property; no residue, no surface damage
Glow-in-Dark Option	Available for low-light emergency egress marking applications
Shelf Life	12–18 months (stored at 25°C / 50% RH, away from direct sunlight)
Core Size	1 inch / 3 inch

Why Choose Pioneer Tapes?



• Purpose-Built for Heavy-Duty Industrial Use: Pioneer's floor marking tape is confirmed for use in heavy-duty industrial areas — not a general-purpose tape adapted for floor use. The PVC film grade, adhesive system, and abrasion-resistance specification are all matched to the demands of factory and warehouse floors, so the tape stays visible and adhered through the daily traffic and cleaning cycles of industrial operations.



• Full ISO Standard Colour Range — Including Glow-in-Dark: All ISO standard floor marking colours are available from a single supplier, along with the glow-in-the-dark option for facilities requiring low-light egress marking. This means your facility's entire colour-coding system can be sourced consistently from Pioneer without managing multiple tape suppliers for different colour standards.



• Pune-Based Manufacturer, Pan-India Supply: Manufacturing in Pune with nationwide supply capability gives Pioneer Tapes shorter lead times for Maharashtra-region industrial and manufacturing clients, and dependable delivery for warehouse, logistics, and automotive facilities across other states.



• Clean Removal Supports 5S Kaizen & Layout Changes: The confirmed clean-removal property is the feature that makes Pioneer's floor marking tape the practical choice for 5S and lean manufacturing programmes — where the floor layout is expected to evolve as the operation improves. Paint cannot be updated without floor downtime; Pioneer's tape comes up cleanly and new markings go down the same day.



• Various Widths & Lengths for Every Marking Requirement: From narrow tape for machine boundary marking and shadow board outlines to wider tape for pedestrian corridors and large-format hazard zone marking, Pioneer's floor marking tape is available in the widths and lengths that cover the full range of industrial visual management applications.



• Bulk Supply for Facility-Wide Marking Programmes: Whether you're marking a new facility from scratch or replenishing a large warehouse's ongoing tape consumption, Pioneer handles bulk floor marking tape orders with consistent colour quality, scheduled supply, and dedicated account support.



• Trusted by Multinational Companies: Today, we're proud to support a wide range of multinational companies with our solutions — including manufacturing plants, warehousing and logistics operations, and automotive facilities that depend on reliable, long-life floor marking systems.
