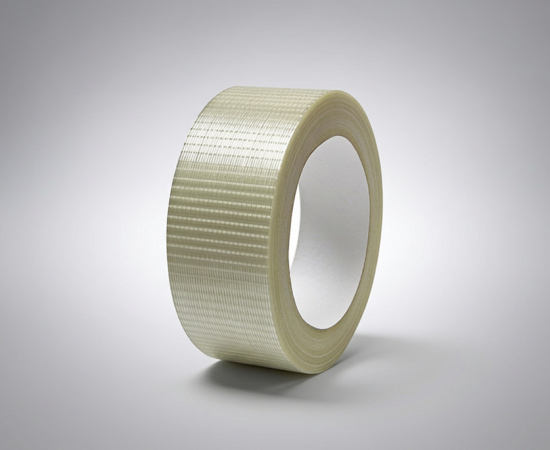

Cross Filament Tape for Strapping



Cross Filament Tape for Heavy Duty Strapping & Bundling

Heavy cartons, palletised loads, and bundled coils don't fail because the carton material is weak — they fail because the strapping holding them together gives way under load, vibration, or handling stress. Conventional packaging tape simply isn't built to take that kind of mechanical strain. Cross filament tape is. It is engineered specifically to replace metal and polypropylene strapping in applications where standard tape would tear, stretch, or let go entirely.

Pioneer Tapes manufactures and supplies cross filament strapping tape for heavyweight carton reinforcement, palletisation, bundling, and coil sealing applications across India. Our fibreglass-reinforced filament tape delivers the high tensile strength and break resistance that heavy packaging demands, in a format that's faster to apply and easier to handle on the line than metal or PP strapping.
As a Pune-based industrial filament tape manufacturer with pan-India supply capability, we help packaging teams and procurement managers select the right filament construction — mono-directional or bi-directional — and width for their specific load-securing application. Today, we're proud to support a wide range of multinational companies with our solutions.

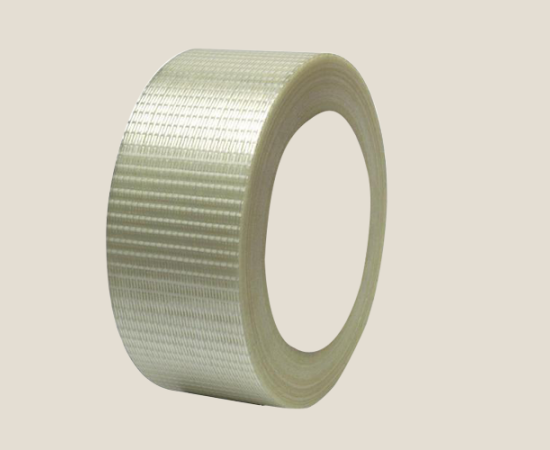

What is Cross Filament Tape?

Cross filament tape — also known as filament tape, strapping tape, or fibreglass reinforced tape — is a high-strength industrial tape built from a polyester or polypropylene film backing, reinforced internally with woven glass fibre filaments, and coated with a synthetic rubber pressure-sensitive adhesive. The glass fibre filaments embedded in the backing are what give this tape its defining characteristic: a breaking strength that approaches and, in many applications, replaces conventional metal and polypropylene strapping.

The filament construction comes in two configurations, each suited to a different load profile. Mono-directional filament tape has filaments running in a single direction (typically lengthwise), maximising tensile strength along the length of the tape — ideal for straight-line strapping and bundling. Bi-directional, or cross filament tape, weaves filaments in both directions, distributing strength across the width as well as the length — providing superior resistance to tearing and puncture from multiple angles, which is why it's the preferred specification for reinforcing heavyweight cartons and irregular loads.

Pioneer Tapes supplies cross filament tape in configurations suited to the full range of heavy-duty packaging and load-securing requirements:


• Bi-Directional Cross Filament Tape: Glass fibres woven in a cross-hatch pattern across both length and width, delivering high tensile strength and tear resistance in every direction. The standard specification for carton reinforcement, palletisation, and irregular load bundling.



• Mono-Directional Filament Tape: Filaments aligned in a single direction for maximum lengthwise tensile strength. Best suited to straight strapping applications such as securing coils, pipe bundles, and palletised stacks where load force runs predominantly along one axis.

We offer tapes in a wide range of colours, and can match them to your exact requirements to ensure they align perfectly with your branding and application needs.




Key Features



• High Tensile Strength — Replaces Metal & PP Strapping: The woven glass fibre reinforcement gives cross filament tape a breaking strength that rivals conventional metal and polypropylene strapping, without the sharp edges, rust risk, or specialised tensioning tools that metal strapping requires. For many heavyweight packaging applications, it's a direct and more practical substitute.



• Exceptional Tear & Puncture Resistance: Unlike standard packaging tape, cross filament tape resists tearing even when nicked or punctured at the edge. The woven filament structure stops a tear from propagating across the tape — once cut, conventional tape unzips along its length; filament tape holds its integrity.



• High Adhesion to Corrugated, Film & Industrial Surfaces: The synthetic rubber adhesive bonds firmly and immediately to corrugated cartons, stretch-wrapped pallets, kraft surfaces, and many industrial packaging materials — providing secure strapping without needing buckles, clips, or tensioning hardware.



• Residue-Free Removal on Most Surfaces: When applied within standard conditions and removed within a reasonable timeframe, Pioneer's filament tape releases cleanly from most packaging surfaces without leaving adhesive residue — simplifying unboxing and reducing cleanup at the receiving end.



• Lightweight Alternative to Metal Strapping: Filament tape achieves high load-securing performance at a fraction of the weight of metal strapping — reducing overall shipment weight, easing manual handling on the packing line, and eliminating the safety hazards associated with metal strap edges and tensioning equipment.



• Fast, Tool-Free Application: Where metal and PP strapping require dedicated tensioning and sealing tools, cross filament tape applies directly by hand or through standard tape dispensing equipment — speeding up packing line throughput and reducing the equipment investment needed for heavy-duty load securing.



• Available in Bi-Directional & Mono-Directional Constructions: Choose the filament orientation that matches your load profile — cross-woven for multi-directional strength on irregular loads, or mono-directional for maximum lengthwise pull strength on straight strapping applications.



• Weather & Moisture Resistant: The film backing and synthetic rubber adhesive maintain strapping integrity through humid warehouse conditions, outdoor storage, and transit through variable climates — without the corrosion risk that affects metal strapping in damp environments.



• Available in Multiple Widths & Custom Lengths: Standard widths suit the most common heavy-duty packaging and strapping requirements, with custom widths and roll lengths available for specific industrial bundling, coil securing, and OEM packaging line requirements.



Applications of Cross Filament Tape

Heavyweight Carton Reinforcement

Standard BOPP packaging tape is adequate for typical e-commerce and retail cartons, but heavyweight cartons — machinery parts, dense industrial components, bulk consumer goods — need reinforcement that standard tape cannot provide. Cross filament tape strengthens carton seams and corners, preventing the box from splitting under its own load weight during stacking, handling, and transit. It is routinely applied in a cross or H-pattern across heavy cartons to reinforce the structure at the points of greatest mechanical stress.

Palletisation & Pallet Load Securing

Filament tape strapping tape is widely used to secure and stabilise palletised loads — reinforcing the bond between cartons on a pallet, securing loose or irregular items that stretch wrap alone won't hold, and providing additional load security for export shipments that face extended transit and multiple handling points. Mono-directional filament tape is particularly effective here, where the load-securing force runs predominantly in one direction across the pallet face.

Bundling & Strapping Applications

Beyond individual carton reinforcement, cross filament tape is used as a direct strapping tape — bundling multiple boxes, components, or materials together for shipment or storage. Its high tensile strength and tool-free application make it a practical alternative to manual strapping operations in warehouses and distribution centres where speed and handling safety matter as much as load security.

Coil & Pipe Bundling

Metal coils, pipe bundles, and rolled industrial materials require strapping that can withstand significant compressive and tensile load without slipping or breaking. Pioneer's filament tape for sealing of metal coils and pipe bundling provides the breaking strength needed for these applications, conforming around curved and irregular profiles in a way that rigid metal strapping cannot always achieve cleanly.

Industrial & Export Packaging

Export shipments and industrial goods that undergo multiple handling stages, extended transit times, and variable storage conditions benefit from the added load security that filament tape provides over standard packaging tape alone. It is frequently used in combination with BOPP tape and stretch wrap as part of a layered packaging strategy — filament tape providing the structural reinforcement, other materials providing the surface seal and weather protection.

Replacing Metal & Polypropylene Strapping

In many packaging operations, cross filament tape is now specified as a direct replacement for metal and PP strapping — eliminating the need for tensioning tools, reducing the safety risk associated with sharp metal strap edges, and speeding up the packing process. For operations looking to streamline their strapping process without compromising on load-securing performance, filament tape offers a practical and cost-effective alternative.


Who Uses Pioneer Cross Filament Tape?

Heavy Industrial & Manufacturing

Manufacturers shipping dense, heavyweight components — machinery parts, metal fabrications, industrial equipment — rely on cross filament tape to reinforce carton seams and secure loads that standard packaging tape cannot adequately hold. The high tensile strength is particularly valued where shipment weight and handling stress routinely exceed standard carton tolerances.

Metal & Pipe Manufacturing

Coil producers, pipe manufacturers, and metal fabrication facilities use filament tape for bundling and strapping coils, pipes, and rolled metal products. Its ability to conform around curved profiles while delivering high breaking strength makes it a preferred alternative to rigid metal strapping for many coil and pipe bundling applications.

Logistics, Warehousing & Export Packaging

Logistics operators and export packers handling heavy or palletised freight use cross filament tape to add load-securing reinforcement beyond what stretch wrap and standard tape provide. For multi-leg international shipments where handling stress accumulates across each transit point, the additional strapping security reduces the risk of load shift, carton failure, and damage claims.

E-commerce & Bulk Goods Fulfilment

Fulfilment operations shipping heavier products — appliances, furniture components, bulk consumer goods — use filament tape to reinforce carton seams that would otherwise be vulnerable under the combined weight and handling stress of courier and freight transit. It is typically used alongside standard BOPP tape, applying filament reinforcement specifically at structural stress points.

Construction Material & Equipment Suppliers

Suppliers of construction materials, tools, and heavy equipment use cross filament tape for securing bundled materials, reinforcing packaging for equipment shipments, and strapping irregular loads that don't fit standard packaging formats. The combination of strength and flexibility makes it adaptable across the varied packaging shapes common in this sector.

Packaging Converters & Distributors

Packaging material distributors and converters supply cross filament tape onward to manufacturing and logistics clients as part of their broader heavy-duty packaging range. Pioneer supplies bulk filament tape to distributors with consistent quality and reliable supply scheduling, supporting their downstream client commitments.


Technical Specifications

Note: Values marked with * are indicative of standard industry ranges. Verified data available on request for specific grades.


Parameter	Specification
Backing Material	Polyester / Polypropylene Film, reinforced with woven glass fibre filaments
Adhesive Type	Synthetic Rubber (pressure-sensitive)
Filament Construction	Bi-Directional (cross-woven) / Mono-Directional
Available Colours	Natural / White (standard); custom colours on request
Width Options	12mm, 18mm, 19mm, 25mm, 50mm (custom widths available)
Length per Roll	Standard 50m; custom lengths available on request
Tensile Strength*	≥ 100 N/25mm (bi-directional); higher for mono-directional grades — verify per specification
Adhesion Strength*	≥ 4 N/25mm (stainless steel, PSTC-1) — verify per grade
Elongation at Break*	≈ 4–8% (low elongation — filament tape is designed to hold load without stretching)
Temperature Resistance*	Service range: -10°C to +60°C (standard grade)
Moisture Resistance	Good — film backing resists water absorption; suitable for humid and outdoor storage
Tear Resistance	High — woven filament structure prevents tear propagation
Removability	Residue-free on most clean packaging surfaces within recommended dwell time
Shelf Life	12–18 months (stored at 25°C / 50% RH, away from direct sunlight)
Core Size	1 inch / 3 inch

Why Choose Pioneer Tapes?



• Right Filament Construction for Your Load Profile: Choosing between bi-directional and mono-directional filament tape — and the correct width and grade within each — depends entirely on your load shape, weight, and the direction of mechanical stress it will face. Pioneer's team understands these distinctions and recommends the construction that will actually hold under your specific packaging or strapping conditions, rather than defaulting to a single generic specification.



• Pune-Based Manufacturer, Pan-India Supply: Manufacturing in Pune with nationwide supply capability means Pioneer delivers shorter lead times for Maharashtra-region operations and dependable logistics for industrial, manufacturing, and export packaging clients across other states. Local production also supports faster turnaround on large-volume or urgent orders.



• Bi-Directional & Mono-Directional Tape Under One Roof: Whether your application calls for cross-woven strength across every direction or maximum lengthwise pull strength for straight strapping, Pioneer stocks both filament constructions — eliminating the need to manage separate suppliers for different load-securing requirements.



• Bulk Supply for Industrial & Export Packaging Operations: From manufacturing facilities shipping heavyweight components to logistics operators handling palletised export freight, Pioneer supplies bulk cross filament tape with consistent quality, scheduled delivery, and dedicated account support to keep high-volume packaging operations running without supply gaps.



• Consistent Tensile Performance Across Every Roll: Filament tape that varies in glass fibre density or adhesive coating between rolls creates unpredictable load-securing performance — exactly the kind of inconsistency that heavy-duty packaging cannot tolerate. Pioneer's controlled manufacturing process ensures uniform filament distribution and adhesive application across every roll in every batch.



• Trusted by Multinational Companies: Today, we're proud to support a wide range of multinational companies with our solutions — a reflection of the consistent strength and quality standards that industrial and export packaging operations depend on from their strapping materials.
