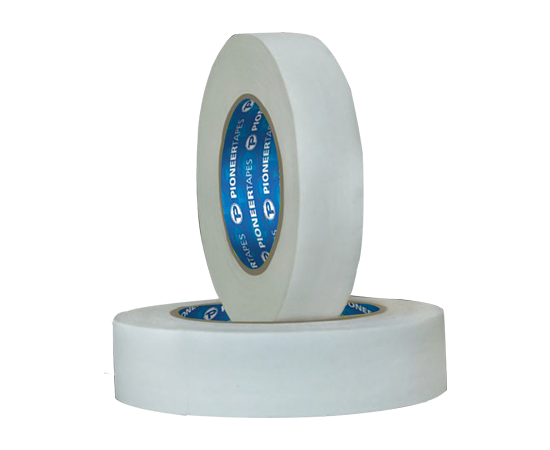

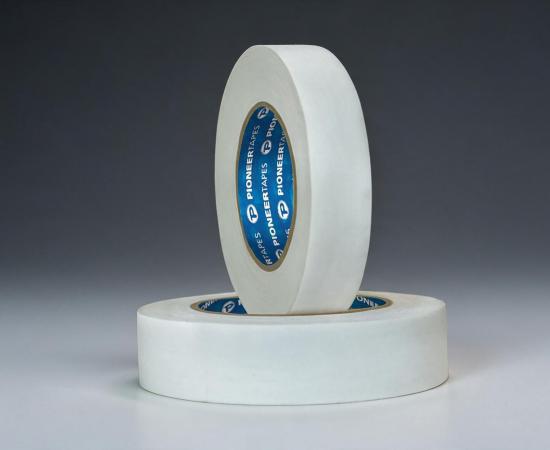

Non-Waterproof Cloth Tape for Industrial Reinforcement & General Purpose Use
Strong, flexible, and built for the job — without paying for waterproofing you don't need.
Not every cloth tape application needs to survive rain, humidity, or outdoor exposure. Indoor manufacturing reinforcement, electrical insulation, dry-condition carton and cable sealing — these jobs need genuine fabric strength and high-tack adhesion, not a waterproof coating that adds cost without adding value. Non-waterproof cloth tape is built precisely for this segment: full cloth-backed strength and flexibility, in a construction matched to indoor and dry-condition industrial use.
Pioneer Tapes manufactures and supplies non-waterproof cloth tape for shoe manufacturing reinforcement, electrical insulation, heavyweight carton and container sealing, cable bundling, and general industrial packing and holding applications across India. The cotton-polyester fabric backing delivers the tensile strength and tear resistance of a cloth tape, with a natural rubber adhesive system calibrated for strong, reliable adhesion in standard indoor industrial conditions.
As a Pune-based industrial cloth tape manufacturer with pan-India supply capability, we help manufacturing teams and procurement managers specify the right tape for their application, without overpaying for performance properties their process doesn't actually require. Today, we're proud to support a wide range of multinational companies with our solutions.
What is Non-Waterproof Cloth Tape?
This isn't a compromise product — it's a purpose-matched one. For indoor manufacturing environments, electrical insulation work, and dry-condition packing applications, the waterproofing layer found in standard duct tape adds cost without adding functional value. Non-waterproof cloth tape delivers the cloth-backed strength, high peel adhesion, and tear resistance these applications actually need, in a more economical construction.
Pioneer Tapes manufactures non-waterproof cloth tape to the following standard specification, with custom widths and lengths available to suit specific application requirements:
- Base Material: Cotton Polyester Mix Fabric — combining the tensile strength of polyester with the flexibility and tactile grip of cotton fibre.
- Adhesive System: Natural Rubber Based adhesive, delivering high initial tack and reliable adhesion to a wide range of indoor industrial surfaces.
We offer tapes in a wide range of colours, and can match them to your exact requirements to ensure they align perfectly with your application needs.
Key Features
- High Peel Adhesion: Pioneer's non-waterproof cloth tape delivers a peel adhesion to steel of 700 gms per 25.4mm², giving it strong, dependable grip across metal, fabric, and most standard industrial surfaces used in manufacturing and packing environments.
- Genuine Cloth-Backed Tensile Strength: With a tensile strength of 25 kg per 25.4mm², the cotton-polyester fabric backing provides real mechanical strength for reinforcement and holding applications — substantially more robust than plastic film tapes of comparable thickness.
- Easy Hand Tear, No Tools Required: Despite its strength, the woven fabric backing tears cleanly by hand across the width of the roll, speeding up application in manufacturing and packing environments where reaching for scissors slows the line down.
- Controlled Elongation for Predictable Performance: With a maximum elongation of 15%, the tape stretches just enough to conform to surfaces and absorb minor handling stress, while still holding its dimensional stability for consistent, predictable application results.
- Natural Rubber Adhesive — Strong Initial Tack: The natural rubber based adhesive bonds immediately on contact, with no need for pressing, heat, or curing time — ideal for high-throughput manufacturing and packing lines where speed of application matters.
- Flexible & Conformable: The fabric backing flexes and conforms to surface irregularities, curves, and edges — maintaining consistent adhesive contact on uneven or textured surfaces where rigid tapes would lift or gap.
- Consistent Roll-to-Roll Quality: Manufactured to tight dimensional tolerances — length ±0.5m, width ±0.5mm — ensuring predictable performance and consistent roll dimensions across every batch, which matters for automated dispensing and high-volume manufacturing use.
- Available in Black & White, Custom Widths & Lengths: Standard colours of black and white suit most industrial and electrical applications, with custom colours, widths, and roll lengths available to match specific manufacturing line requirements.
Applications of Non-Waterproof Cloth Tape
Non-waterproof cloth tape is widely used as a reinforcement material during shoe manufacturing — strengthening seams, securing components during assembly, and providing structural support to footwear parts during the production process. Its tensile strength and conformability make it well suited to the varied shapes and materials involved in footwear construction.
Electrical Insulation
The fabric backing and natural rubber adhesive of non-waterproof cloth tape make it a practical choice for electrical insulation applications, where the tape needs to wrap cleanly around wiring, cable bundles, and electrical components, providing mechanical protection and insulation in standard indoor electrical work.
Heavy Weight Carton, Container & Cable Sealing
For heavier cartons, containers, and cable bundles that need a stronger seal than standard packaging tape can provide, non-waterproof cloth tape offers the additional tensile strength and high-tack adhesion required — particularly in indoor warehouse and manufacturing environments where moisture resistance isn't a primary concern.
General Packing & Holding
Beyond its specific industrial applications, non-waterproof cloth tape serves a broad general-purpose role in packing and holding tasks across manufacturing facilities — bundling components, securing parts during transit between production stages, and a wide range of incidental holding tasks that come up in any industrial environment.
Other Allied Industrial Applications
Manufacturing and assembly operations across multiple sectors use non-waterproof cloth tape for a variety of allied applications wherever cloth-backed strength, flexibility, and reliable adhesion are needed in dry, indoor conditions — without requiring the moisture-barrier properties (and added cost) of a waterproof grade.
Who Uses Pioneer Non-Waterproof Cloth Tape?
Shoe manufacturers use non-waterproof cloth tape as a reinforcement material during production, taking advantage of its tensile strength and flexibility to support seams and components through the manufacturing process.
Electrical & Electronics Manufacturing
Electrical component manufacturers and assembly operations use non-waterproof cloth tape for insulation and wrapping applications, where the fabric backing's mechanical protection and the rubber adhesive's reliable grip suit standard indoor electrical work.
Packaging & Warehousing Operations
Warehouses and packing operations handling heavyweight cartons, containers, and cable bundles use non-waterproof cloth tape where a stronger seal than standard packaging tape is needed, in indoor conditions where moisture resistance isn't the primary requirement.
General Manufacturing & Industrial Assembly
Manufacturing facilities across multiple sectors keep non-waterproof cloth tape on hand for general packing, holding, bundling, and incidental reinforcement tasks that arise throughout production and assembly operations.
Cable & Wire Harness Production
Operations involved in cable assembly and wire harness production use non-waterproof cloth tape for bundling and securing cable runs during manufacturing, valuing its tensile strength and clean hand-tear properties for production-line efficiency.
Technical Specifications
| Parameter | Specification |
| Base Material | Cotton Polyester Mix Fabric |
| Adhesive Type | Natural Rubber Based |
| Total Thickness | 280 Micron (±10) |
| Peel Adhesion to Steel | 700 gms / 25.4mm² |
| Tensile Strength | 25 kg / 25.4mm² |
| Elongation | 15% Maximum |
| Available Colours | Black & White; custom colours on request |
| Width | As required (custom widths available) |
| Length | As required (custom lengths available) |
| Dimensional Tolerance | Length: ±0.5m | Width: ±0.5mm |
| Waterproofing | Not waterproof — designed for indoor / dry-condition use |
| Tearability | Clean hand tear across width — no tools required |
| Shelf Life | 12–18 months (stored at 25°C / 50% RH, away from direct sunlight) |
| Core Size | 1 inch / 3 inch |
Why Choose Pioneer Tapes?
- Right Specification, Right Cost: Waterproofing adds cost and isn't always necessary. Pioneer's team helps you determine whether your application genuinely needs a waterproof grade or whether non-waterproof cloth tape will perform just as reliably at a more economical price point — so you're not paying for performance properties your process doesn't use.
- Pune-Based Manufacturer, Pan-India Supply: Manufacturing in Pune with nationwide supply capability gives Pioneer Tapes shorter lead times for Maharashtra-region manufacturers and dependable delivery for industrial clients across other states.
- Consistent Dimensional Tolerances: Manufactured to tight tolerances of ±0.5m on length and ±0.5mm on width, Pioneer's non-waterproof cloth tape performs predictably on automated dispensing equipment and high-volume manufacturing lines where dimensional consistency matters.
- Custom Widths & Lengths to Match Your Line: Beyond standard roll formats, Pioneer manufactures non-waterproof cloth tape to the specific width and length required for your application — reducing waste and improving fit for specialised manufacturing and packing processes.
- Bulk Supply for Manufacturing Operations: Whether you're a footwear manufacturer, electrical component producer, or general industrial operation, Pioneer handles bulk non-waterproof cloth tape orders with consistent quality, scheduled supply, and dedicated account support.
- Consistent Adhesion & Tensile Performance: Cloth tape that varies in adhesive coat weight or fabric quality between rolls creates inconsistent peel adhesion and tensile strength — a real problem on production lines that depend on predictable tape performance. Pioneer's controlled manufacturing process ensures the same 700 gms/25.4mm² peel adhesion and 25 kg/25.4mm² tensile strength across every roll.
- Trusted by Multinational Companies: Today, we're proud to support a wide range of multinational companies with our solutions — a reflection of the consistency and reliability our cloth tape delivers across manufacturing and industrial applications.
Frequently Asked Questions
Non-waterproof cloth tape is used for reinforcement during shoe manufacturing, electrical insulation, sealing heavyweight cartons and containers, cable bundling, and general packing and holding applications in indoor industrial settings. It provides the tensile strength, flexibility, and high-tack adhesion of a cloth-backed tape, in a construction suited to dry, indoor conditions rather than outdoor or moisture-exposed environments.
Waterproof cloth tape includes a polyethylene or similar moisture-barrier coating on the fabric backing, making it suitable for outdoor use, wet environments, and applications where water resistance is essential. Non-waterproof cloth tape uses the same cotton-polyester fabric backing and natural rubber adhesive, but without the waterproof coating — making it a more cost-effective choice for indoor manufacturing, electrical insulation, and dry-condition packing applications where moisture resistance isn't required.
Yes. With a tensile strength of 25 kg per 25.4mm² and peel adhesion to steel of 700 gms per 25.4mm², Pioneer's non-waterproof cloth tape provides substantially more holding strength than standard packaging tape — making it well suited to heavyweight cartons, containers, and cable bundles that need a stronger seal, provided the application is in an indoor, dry-condition environment.
Yes — this is one of its standard applications. The fabric backing wraps cleanly around wiring and cable bundles, providing mechanical protection and insulation suited to standard indoor electrical work. For applications where moisture exposure is a concern, a waterproof-rated electrical tape grade should be specified instead.
Pioneer's standard non-waterproof cloth tape is available in Black and White. Custom colours can be supplied on request to match specific branding, colour-coding, or application requirements — contact our team with your colour specification and order volume to discuss options.
Yes. Pioneer manufactures non-waterproof cloth tape in custom widths and lengths to match specific manufacturing line and application requirements, maintained to tight dimensional tolerances of ±0.5m on length and ±0.5mm on width. Share your required dimensions and order volume with our team and we'll confirm production lead times.
Yes. Pioneer Tapes supplies non-waterproof cloth tape in bulk to footwear manufacturers, electrical component producers, packaging operations, and general industrial manufacturers across India. Bulk orders are handled with dedicated account support, consistent quality across every supply batch, and scheduling to fit your production timelines. Contact us with your volume requirements and preferred width and colour specification and we'll structure a supply arrangement accordingly.
Need the Right Cloth Tape for Your Production Line?
Tell us about your application, surface, and volume requirements. Pioneer Tapes will confirm whether non-waterproof cloth tape is the right specification for your process and arrange samples before you commit to a bulk order.
No overspecifying. No unnecessary cost. Just the right tape for the job, backed by expert guidance from a manufacturer who understands what footwear, electrical, and general manufacturing operations actually need.
Contact Pioneer Tapes today — request a sample, get a bulk quote, or speak with our tape specialists.
