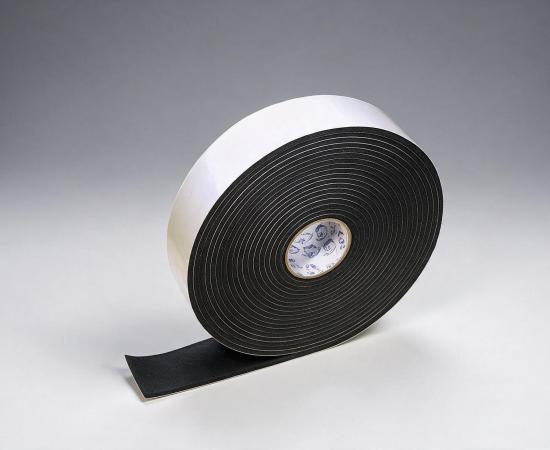

Nitrile Foam Tape for HVAC Insulation, Sealing & Vibration Dampening
Insulate without fibres. Seal without gaps. Dampen vibration where it starts.
Pioneer Tapes manufactures and supplies self-adhesive nitrile foam tape for HVAC equipment panel sealing, chilled water line wrapping, fibre-free insulation, metal-to-metal gasket and gap-filling applications, and vibration and sound dampening in commercial and industrial HVAC systems across India. Black in colour, single-sided, and built from elastomeric closed-cell nitrile rubber (NBR) foam, it compresses and conforms under assembly pressure to seal joints and surfaces that other tape or insulation materials cannot reach.
As a Pune-based HVAC tape manufacturer with pan-India supply capability, we help HVAC engineers, system integrators, and facility maintenance teams select the right foam thickness and width for their sealing and insulation application. Today, we're proud to support a wide range of multinational companies with our solutions.
What is Nitrile Foam Tape?
The closed-cell structure of the nitrile rubber foam is the property that makes it fundamentally different from open-cell foam tapes and conventional fibre insulation. In a closed-cell foam, the individual cells are sealed — there are no interconnected pathways through the material for air, water vapour, or moisture to migrate through. This means the foam acts as a genuine thermal barrier and vapour barrier simultaneously, without the need for a separate vapour control layer. When compressed between two surfaces under assembly pressure, the foam seals completely — preventing both heat transfer and moisture infiltration at the joint, which is precisely what HVAC duct panel joints, equipment seams, and pipe fittings require.
Pioneer's nitrile foam tape is specifically formulated to be indoor air and airstream friendly — fibre-free and formaldehyde-free. These two properties make it a direct, health-safe alternative to glass fibre insulation in applications where the tape or insulation is within or adjacent to the air handling stream. No fibres can be shed into the air that occupants breathe, and no formaldehyde off-gassing occurs after installation.
Pioneer Tapes supplies nitrile foam tape in:
- Multiple Thicknesses: From thin gasketing grades for panel joint sealing to thicker grades for pipe insulation wrapping and thermal insulation of chilled water lines.
- Custom Widths: Standard and custom widths for specific duct, pipe, and panel sealing applications — contact Pioneer's team with your dimensions.
We offer nitrile foam tape in a wide range of thicknesses and widths, and can match them to your exact application requirements.
Key Features
- Fibre-Free & Formaldehyde-Free — Indoor Air Quality Safe: Specifically designed to be indoor air and airstream friendly — no loose fibres can be shed into the HVAC airstream, and no formaldehyde off-gassing occurs after installation. This makes it a health-safe alternative to glass fibre insulation in air-handling and duct environments, and a compliance-safe choice for projects with indoor air quality specifications.
- Excellent Thermal Insulation — Low Thermal Conductivity: The closed-cell nitrile rubber structure delivers genuine thermal insulation performance, with low thermal conductivity that resists heat transfer through the foam layer — relevant for chilled water line wrapping, cold duct insulation, and any application where maintaining the temperature of a surface or fluid is the objective.
- Vapour Barrier — Anti-Condensation: The sealed closed-cell structure prevents moisture vapour from migrating through the foam, eliminating the condensation that forms when warm, humid air reaches a cold surface. This anti-condensation property is critical on chilled water pipework and cold duct surfaces, where condensation causes corrosion, mould, and insulation deterioration over time.
- Effective Seal Gasket Between Sheet Metal Surfaces: When compressed between metal panels, flanges, or sheet metal components under assembly pressure, the elastomeric foam conforms and seals completely — eliminating the air gaps, sound leakage paths, and thermal bridges that exist at metal-to-metal contact points that cannot be sealed by rigid tape or hard gasket materials.
- Vibration & Shock Reduction — Sound Deadening: The elastomeric foam absorbs and dissipates mechanical vibration and shock, reducing noise transmission between HVAC components and dampening the vibration that fan motors, compressors, and air handling units generate during operation — contributing to lower ambient noise levels in HVAC-served spaces.
- Easily Compressed & Conformable to Irregular Surfaces: The soft elastomeric structure compresses easily under assembly pressure and conforms to irregular, curved, or uneven panel and pipe surfaces — making complete contact across the entire sealed area rather than bridging gaps the way a rigid gasket or tape would.
- Weather Resistant & Durable in HVAC Service Conditions: Nitrile rubber is inherently resistant to oils, solvents, UV exposure, ozone, and the temperature cycling and humidity variation found in commercial and industrial HVAC service environments — maintaining its sealing and insulation performance over the expected service life of the equipment it's installed in.
- Self-Adhesive for Fast, Tool-Free Installation: The single-sided pressure-sensitive adhesive allows the tape to be peeled and pressed into position on clean, dry surfaces without specialist tools, primers, or adhesives — reducing installation time and labour cost in HVAC panel assembly and site maintenance applications.
Applications of Nitrile Foam Tape
The primary application of nitrile foam tape is sealing the panel joints and seams on HVAC equipment — air handling units, fan coil units, ductwork sections, access panels, and equipment housing seams where sheet metal panels meet and need to be sealed against air leakage, heat transfer, and sound transmission. The foam compresses between the mating metal surfaces to create a complete seal that rigid tape and hard gasket materials cannot achieve across the manufacturing tolerances of sheet metal panel joints.
Specific HVAC panel sealing applications include:
- Air handling unit panel joint sealing between casing sections
- Fan coil unit access panel sealing to prevent conditioned air bypass
- Ductwork flange and connection sealing at joints and transitions
- Equipment housing and enclosure seam sealing to prevent noise and air leakage
- Damper frame and access door perimeter sealing
Chilled Water Line Wrapping & Anti-Condensation
Chilled water pipework running through building spaces is one of the most demanding applications for insulation and vapour control. The cold pipe surface creates a significant temperature differential with the warm, humid building air — which drives moisture migration towards the pipe and causes condensation, corrosion, and dripping if the insulation is not a genuine vapour barrier. Nitrile foam tape's closed-cell structure provides both the thermal insulation to reduce surface temperature differential and the vapour barrier needed to prevent moisture reaching the pipe surface.
Fibre-Free Insulation Alternative
In HVAC applications where glass fibre insulation is technically problematic — within air handling units, in spaces with high indoor air quality requirements, or in equipment that requires fibre-free materials for hygiene or process reasons — nitrile foam tape provides an effective, workable alternative. It insulates and seals without the fibre shedding, protective handling requirements, and airstream contamination risk associated with glass wool or mineral fibre products.
Metal-to-Metal Gaskets & Gap Filling
Wherever two sheet metal components meet in an HVAC or industrial assembly, there is a potential air, sound, and thermal leakage path at the joint. Nitrile foam tape compresses between the metal surfaces to fill the gap completely — creating a gasket seal that prevents conditioned air bypass, reduces flanking sound transmission, and eliminates the thermal bridge at the metal contact point. This makes it a practical alternative to moulded rubber gaskets in many HVAC panel and flange sealing applications.
Vibration Isolation & Sound Deadening
HVAC equipment generates mechanical vibration from fan motors, compressors, and blowers that can be transmitted through metal structures into building fabric and occupied spaces — contributing to ambient noise levels and the perception of HVAC system quality. Nitrile foam tape placed between vibrating components and their mounting surfaces absorbs and dissipates this vibration energy, reducing structure-borne noise transmission and contributing to quieter HVAC operation.
Industrial Sealing & Gasketing
Beyond HVAC, nitrile rubber's inherent resistance to oils, fuels, and solvents makes nitrile foam tape suitable for gasketing and sealing applications in industrial manufacturing environments — including panel sealing on electrical enclosures, machinery housings, and process equipment where the foam needs to maintain its sealing properties in the presence of oils and industrial chemicals.
Who Uses Pioneer Nitrile Foam Tape?
Air handling unit, fan coil, and HVAC equipment manufacturers use nitrile foam tape as a standard panel sealing material in equipment assembly — applying it to panel joints, access covers, and equipment seams to meet performance specifications for air leakage, thermal performance, and acoustic output.
HVAC System Installers & Building Services Contractors
Mechanical contractors installing HVAC systems in commercial and industrial buildings use nitrile foam tape on site for ductwork sealing, equipment connection sealing, and chilled water pipe insulation — where its combination of thermal insulation, vapour barrier, and conformability make it more practical than sheet insulation materials in many installation situations.
Facilities Management & Building Maintenance
FM teams maintaining commercial HVAC systems use nitrile foam tape for repair sealing on equipment panel joints, access covers, and condensation-prone pipe sections — where the tape can be applied quickly without requiring specialist equipment or full equipment shutdown.
Industrial Manufacturing & Process Plants
Manufacturing facilities and process plants with HVAC or process ventilation systems use nitrile foam tape for equipment panel sealing, vibration isolation, and industrial gasketing applications — particularly in environments where oil resistance is a requirement for the gasket material.
Refrigeration & Cold Room Contractors
Refrigeration installation contractors and cold room builders use nitrile foam tape for sealing panel joints, pipe penetrations, and equipment connections in refrigerated spaces — where the anti-condensation performance of the closed-cell foam is particularly relevant in the severe temperature differentials of cold storage environments.
Commercial Construction & MEP Contractors
MEP (mechanical, electrical, plumbing) contractors working on commercial building services installations use nitrile foam tape as part of their HVAC sealing and insulation programme — specifying it for duct and equipment sealing work where fibre-free materials, good indoor air quality credentials, and ease of site application are all relevant specification considerations.
Technical Specifications
| Parameter | Specification |
| Foam Material | Nitrile Butadiene Rubber (NBR) — Elastomeric Closed-Cell Foam |
| Configuration | Single-Sided (adhesive on one face) |
| Colour | Black |
| Adhesive Type | Pressure-Sensitive (acrylic or rubber, grade-dependent) |
| Thickness Range* | 3mm to 25mm (standard grades; custom thicknesses available) |
| Width | As required — standard and custom widths available |
| Cell Structure | Closed-Cell — no interconnected air pathways |
| Thermal Conductivity* | Low — ≤ 0.040 W/m·K (verify with Pioneer per grade) |
| Vapour Permeability | Very low — closed-cell structure provides effective vapour barrier |
| Temperature Resistance* | Service range: -40°C to +105°C (standard NBR foam grades) |
| Oil & Solvent Resistance | Good — nitrile rubber inherently resistant to oils, fuels, solvents |
| Fibre Content | Fibre-free — no loose fibres; safe for indoor air and airstream environments |
| Formaldehyde Content | Formaldehyde-free — indoor air quality safe |
| Flame Retardancy* | Available in flame retardant grades — verify with Pioneer |
| Shelf Life | 12–18 months (stored at 25°C / 50% RH, away from direct sunlight) |
Why Choose Pioneer Tapes?
- Right Thickness for Your Sealing or Insulation Gap: Nitrile foam tape needs to match the gap it's being asked to seal — too thin and the foam doesn't fully compress to fill the joint; too thick and it may prevent panel closure or create misalignment. Pioneer's team reviews your panel joint dimensions and application conditions before recommending the right foam thickness, so the seal is complete and the assembly closes correctly.
- Pune-Based Manufacturer, Pan-India Supply: Manufacturing in Pune with nationwide supply capability gives Pioneer Tapes shorter lead times for Maharashtra-region HVAC manufacturers and building services contractors, and dependable delivery for commercial construction and industrial clients across other states.
- Fibre-Free, Formaldehyde-Free — Specification Confidence: The indoor air quality credentials of Pioneer's nitrile foam tape — fibre-free and formaldehyde-free as confirmed on the product specification — provide genuine specification confidence for projects with IAQ requirements, green building certification targets, or healthcare and education facility specifications where off-gassing and fibre contamination are not acceptable.
- Custom Widths & Thicknesses for HVAC Assembly: Pioneer manufactures nitrile foam tape in custom widths and thicknesses to match specific panel joint dimensions, pipe diameters, and equipment sealing requirements — reducing waste and ensuring a consistent foam cross-section across every installed seal.
- Bulk Supply for HVAC Manufacturers & Contractors: Whether you're an HVAC equipment manufacturer using nitrile foam tape in production assembly or a contractor managing supply across multiple commercial building projects, Pioneer handles bulk orders with consistent quality, scheduled supply, and dedicated account support.
- Consistent Foam Properties Across Every Roll: Foam tape that varies in density or cell structure between rolls creates inconsistent sealing and insulation performance — a real risk in HVAC panel assembly where air leakage test performance is a measurable quality specification. Pioneer's controlled manufacturing process ensures consistent closed-cell structure and adhesive application across every roll.
- Trusted by Multinational Companies: Today, we're proud to support a wide range of multinational companies with our solutions — including HVAC equipment manufacturers, building services contractors, and industrial facility operators who depend on consistent sealing and insulation performance across their systems.
Frequently Asked Questions
Nitrile foam tape is used for thermal insulation, vapour barrier sealing, vibration dampening, and acoustic deadening in HVAC and industrial applications. Primary uses include sealing panel joints and seams on HVAC equipment (air handling units, fan coil units, ductwork), wrapping chilled water pipework to provide thermal insulation and prevent condensation, creating metal-to-metal gasket seals between sheet metal components, isolating vibrating HVAC equipment from supporting structures, and providing a fibre-free insulation alternative in applications where glass wool is not suitable.
Both are elastomeric closed-cell foam tapes with sealing, cushioning, and insulation properties, but the polymer chemistry and performance profile differ in ways that matter for HVAC and industrial use. Nitrile rubber (NBR) foam has inherently better oil and solvent resistance, better performance across a wider temperature range (particularly at low temperatures), and better UV and ozone resistance than EVA foam — making it the more robust choice for demanding HVAC and industrial environments. It is also specifically formulated for fibre-free indoor air quality performance, which is a relevant specification for HVAC airstream applications. EVA foam is a more economical general-purpose sealing and mounting foam suited to lighter-duty indoor applications.
Yes. Pioneer's nitrile foam tape is specifically described as indoor air and airstream friendly — it is fibre-free, meaning no loose fibres can be shed into the HVAC airstream, and formaldehyde-free, meaning no formaldehyde off-gassing occurs after installation. These two properties specifically address the health and indoor air quality concerns associated with glass fibre insulation products when used in air-handling environments, and make nitrile foam tape a compliant choice for HVAC applications in occupied buildings including healthcare facilities, education buildings, and other environments with indoor air quality specifications.
Condensation on a chilled water pipe forms when warm, humid room air reaches the cold pipe surface and the moisture vapour in that air condenses into liquid water. Nitrile foam tape prevents this through two mechanisms: the low thermal conductivity of the foam insulates the pipe surface, raising the surface temperature of the outer foam face above the dew point of the room air; and the closed-cell structure of the foam creates a vapour barrier that prevents moisture vapour from migrating through the insulation to reach the pipe. Both mechanisms are needed — without the vapour barrier, moisture would pass through the insulation even if the foam provided thermal resistance. Nitrile's closed-cell structure provides both.
Pioneer supplies nitrile foam tape across a range of thicknesses from approximately 3mm through to 25mm, covering the range from thin panel joint gasketing through to pipe insulation wrapping applications. Custom thicknesses outside this range are available on request. The right thickness for your application depends on the gap or surface irregularity you need to fill, the required thermal resistance, and any mechanical constraints on the assembly. Share your application details with Pioneer's team and we'll confirm the appropriate grade.
Yes. Nitrile rubber foam maintains its elastomeric properties and sealing performance at very low temperatures — standard NBR foam grades are typically rated for service down to -40°C, making them suitable for refrigeration and cold room applications. The closed-cell vapour barrier property is especially relevant in cold store environments, where the temperature differential between inside and outside the cold space creates a strong vapour drive towards the cold side. Confirm your minimum service temperature with Pioneer's team when specifying for cold room applications.
Yes. Pioneer Tapes supplies nitrile foam tape in bulk to HVAC equipment manufacturers, building services contractors, facilities management companies, refrigeration contractors, and industrial manufacturing operations across India. Bulk orders are managed with dedicated account support, consistent foam density and adhesive performance across every supply batch, and scheduling to fit production or project timelines. Contact us with your volume requirements, required thickness and width, and any specific performance grade needs, and we'll structure a supply arrangement accordingly.
Seal Tighter. Insulate Better. Eliminate Fibres.
Tell us about your panel joint dimensions, pipe diameter, temperature range, and indoor air quality requirements. Pioneer Tapes will recommend the right nitrile foam tape thickness and grade for your application, and arrange samples before you commit to a bulk order.
Fibre-free. Formaldehyde-free. Sealed against moisture, air, and vibration — backed by expert guidance from a manufacturer who understands what HVAC and industrial teams actually need.
Contact Pioneer Tapes today — request a sample, get a bulk quote, or speak with our HVAC tape specialists.
