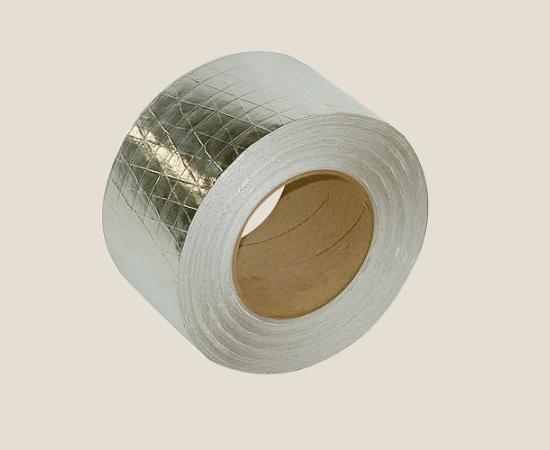

Foil Scrim Kraft (FSK) Tape for HVAC Duct Sealing & Insulation
Three layers. One seal. The vapour barrier, the strength, and the flexibility — all in a single tape.
Pioneer Tapes manufactures and supplies FSK foil tape for HVAC duct sealing, insulation system closure, ASJ/foil-faced insulation joint sealing, and vapour barrier applications across commercial and industrial building services projects in India. Coated with a strong hot melt adhesive and laminated with a release liner, Pioneer's FSK tape adheres firmly to aluminium-faced fibreglass duct boards, foil-faced pipe insulation, and related HVAC insulation facing materials.
As a Pune-based HVAC tape manufacturer with pan-India supply capability, we help HVAC installers, insulation contractors, and building services engineers select the right FSK tape width and format for their duct and insulation seaming requirements. Today, we're proud to support a wide range of multinational companies with our solutions.
What is Foil Scrim Kraft (FSK) Tape?
Each of the three layers performs a specific, non-overlapping role in the tape's performance:
- Aluminium Foil Layer: Provides durability, reflectivity, and the vapour barrier function — the metallic foil is impermeable to moisture and water vapour, creating a continuous barrier across the insulation seam or joint it covers.
- Fibreglass Scrim Layer: A woven fibreglass reinforcement layer embedded within the tape structure that significantly enhances tensile and tear strength, enabling the tape to withstand the mechanical stresses of thermal expansion, HVAC system pressure, and long-term service without splitting or tearing at the joint.
- Kraft Paper Layer: The innermost layer that adds flexibility and pliability to the tape, preventing the aluminium foil from cracking when the tape is bent or applied around corners, and allowing the tape to conform to irregular insulation surfaces without the foil layer fracturing.
The three layers together, coated with Pioneer's strong hot melt adhesive, create a tape that sticks immediately, holds permanently, reflects radiant heat, resists moisture vapour, and flexes without cracking — which is precisely the combination of properties that HVAC insulation seaming requires that no single-layer tape can replicate.
Pioneer Tapes supplies FSK tape in standard widths of 2", 4", and 6" (50mm, 100mm, and 150mm), with the release liner allowing clean, controlled peel-and-apply installation on fibreglass duct board seams, foil-faced insulation jackets, and HVAC duct joints.
We offer FSK tape in standard and custom widths to match your duct, pipe, and insulation seaming requirements.
Key Features
- Genuine Moisture & Vapour Barrier: The aluminium foil outer layer creates an impermeable metallic barrier against moisture and water vapour penetration through the insulation seam — the same property that makes aluminium foil the standard vapour barrier facing on HVAC duct insulation systems, now extended across every sealed joint and seam.
- Fibreglass Scrim Reinforcement for Strength & Durability: The embedded fibreglass scrim layer significantly increases the tape's tensile strength (tested at 27.48 N/in against a ≥20 N/in specification) and tear resistance, enabling it to withstand the mechanical stresses from HVAC system operation — air pressure, vibration, and the repeated thermal expansion and contraction of the duct system — without splitting or failing at the joint.
- Kraft Paper Flexibility — No Cracking on Bends & Corners: The kraft paper backing layer gives the tape the pliability to be applied around corners, duct transitions, and irregular insulation profiles without the aluminium foil layer cracking or delaminating — a practical requirement in HVAC installation where seaming cannot always follow flat, straight lines.
- Strong Hot Melt Adhesive — Immediate, Permanent Bond: Coated with a strong hot melt pressure-sensitive adhesive (180° peel adhesion tested at 68.32 N/in against a ≥60 N/in specification), FSK tape bonds immediately on contact with clean insulation facing surfaces and maintains a permanent, load-bearing bond through the service life of the HVAC system.
- Effective Sealing & Closure for Insulation Systems: Seals seams, joints, and closure laps on aluminium-faced fibreglass duct boards, ASJ-faced pipe insulation, foil-faced blanket insulation, and other foil-faced insulation systems — maintaining the integrity and performance of the insulation system at every joint.
- Wide Temperature Range Performance: Performs effectively within a temperature range from -20°C to +80°C (-4°F to 176°F), covering the operational temperature range of commercial HVAC ductwork, chilled water pipe insulation, and building services applications without adhesive failure or foil degradation.
- Release Liner for Clean, Controlled Application: The release liner protects the hot melt adhesive until application, allowing the tape to be cut to length and positioned precisely before pressing down — important for clean, consistent seam sealing on complex duct board installations where repositioning may be needed before final commitment.
- Reflective Aluminium Surface for Radiant Heat Reduction: The bright aluminium foil outer face reflects radiant heat, contributing to the thermal efficiency of insulated duct systems and reducing heat gain from the surrounding environment — complementing the thermal performance of the insulation it seals.
Applications of FSK Foil Tape
The primary application of FSK tape is sealing the seams and joints on aluminium-faced fibreglass duct boards — the modular insulation panels used to construct low-pressure HVAC ductwork in commercial buildings. When duct board sections are assembled, every longitudinal seam and transverse joint must be sealed to prevent conditioned air bypass, maintain system thermal performance, and complete the vapour barrier across the duct surface. FSK tape is the standard sealing material for these joints, bonding to the aluminium foil facing of the duct board across the full seam length.
ASJ / All-Service Jacket Closure System
ASJ (All-Service Jacket) is the standard factory-applied facing on pipe insulation systems used in mechanical insulation work. When pipe insulation sections are installed and the ASJ laps are closed, FSK tape is used as the closure system — sealing the longitudinal and butt joints to create a continuous, vapour-tight insulation jacket over the pipe. The tape's bonding adhesion to ASJ facing, combined with its vapour barrier properties, makes it the standard specified closure tape for mechanical pipe insulation in commercial and industrial building services.
Foil-Faced Insulation Joint Sealing
Foil-faced fibreglass blanket insulation — used for duct wrap insulation on sheet metal ductwork — requires all joints, seams, and overlaps to be sealed with FSK tape to complete the vapour barrier across the insulation system. Any gap or inadequately sealed joint in the foil facing creates a vapour ingress path that, over time, leads to insulation degradation, condensation within the insulation layer, and reduced thermal performance.
HVAC Duct Joint Sealing
Beyond duct board construction, FSK tape is used for sealing joints and seams in installed HVAC ductwork — patching areas of damage or inadequate factory joint sealing, sealing around penetrations through insulated duct walls, and providing additional sealing at duct transitions and connections where the standard factory closure may need to be supplemented for air tightness and vapour control.
Vapour Barrier Applications
FSK tape's foil face and fibreglass reinforcement make it suitable as a vapour retarder tape in building fabric applications beyond HVAC — sealing laps and joints in foil-faced building insulation, sealing vapour control layer penetrations, and providing a reinforced vapour barrier seal at construction details where a standard film tape would not provide adequate mechanical strength.
How to Apply FSK Tape — Best Practice
Correct application is essential for FSK tape to deliver its full sealing and vapour barrier performance:
- Surface Preparation: Clean the surface where the tape will be applied — remove dust, debris, oil, and loose insulation fibres. Ensure the foil facing is dry and free from condensation.
- Cutting to Length: Measure the required length and cut the tape using scissors or a utility knife. Leave a slight overlap at seam ends for a continuous barrier.
- Liner Peel & Position: Peel the release liner to expose the adhesive face. Align the tape precisely over the joint before pressing down.
- Pressing & Sealing: Apply firm, even pressure along the full tape length using a roller or firm finger pressure to ensure complete adhesive contact. Pay particular attention to corners, edges, and butt joint intersections.
- Overlap at Seam Intersections: At butt joints and seam intersections, overlap the tape to create a continuous, unbroken barrier — a gap at any intersection point creates a vapour and air ingress path through the insulation system.
Who Uses Pioneer FSK Foil Tape?
Contractors fabricating and installing fibreglass duct board HVAC systems specify FSK tape as the standard seaming and joint sealing material — it is the tape most commonly used and specced for this application category across commercial HVAC installation practice.
Mechanical Insulation Contractors
Insulation contractors installing pipe insulation systems on chilled water, hot water, and steam pipework in commercial and industrial buildings use FSK tape as the standard ASJ closure and joint sealing tape for foil-faced pipe insulation.
Commercial Building Services & MEP Contractors
MEP contractors managing the full mechanical services installation on commercial building projects specify FSK tape for duct insulation seaming, pipe insulation closure, and vapour barrier sealing as part of their insulation programme.
Facilities Management & HVAC Maintenance
FM teams maintaining HVAC insulation systems in commercial buildings use FSK tape for repair sealing on damaged or inadequately sealed duct insulation joints, insulation wrap repairs, and patching of compromised vapour barrier facing on duct and pipe insulation.
Industrial HVAC & Process Insulation
Industrial facilities with process ventilation, chiller systems, and industrial HVAC infrastructure use FSK tape for insulation joint sealing and vapour barrier maintenance on ductwork and pipework in manufacturing and process environments.
Cold Room & Refrigeration Contractors
Refrigeration and cold room installation contractors use FSK tape for insulation system seaming in cold store applications, where the vapour barrier performance of the foil face and the tape's low-temperature performance are particularly relevant.
Technical Specifications
General construction and dimensional specifications:
| Parameter | Specification |
| Construction | 3-Layer Laminate: Aluminium Foil + Fibreglass Scrim + Kraft Paper |
| Adhesive Type | Strong Hot Melt (pressure-sensitive) |
| Release Liner | Silicone-Coated Paper Liner |
| Total Thickness | 6.8 mils (without liner) |
| Standard Widths | 2" (50mm) / 4" (100mm) / 6" (150mm) |
| Temperature Range | -20°C to +80°C (-4°F to 176°F) |
| Vapour Permeability | Very low — aluminium foil provides effective vapour barrier |
| Reflectivity | High — bright aluminium foil surface reflects radiant heat |
| Test Standard Reference | GB4852-84 (Tack) | GB7753-87 (Tensile) | GB/T2792-1998 (Peel) |
| Shelf Life | 12–18 months (stored at 20–25°C / 50% RH, away from direct sunlight) |
Mechanical performance test results:
| Test / Parameter | Unit | Specification | Tested Result |
| Tensile Strength | N/in | ≥ 20 | 27.48 ✓ |
| 180° Peel Adhesion | N/in | ≥ 60 | 68.32 ✓ |
| Tack | — | — | GB4852-84 method |
| Adhesive Type | — | Hot Melt | — |
Why Choose Pioneer Tapes?
- Tested Performance — Published Test Data, Not Estimates: Pioneer's FSK foil tape specifications are backed by actual test results: tensile strength 27.48 N/in (against ≥20 spec) and 180° peel adhesion 68.32 N/in (against ≥60 spec), both tested to Chinese national standards. This is measurable, documented performance — not indicative industry ranges.
- Pune-Based Manufacturer, Pan-India Supply: Manufacturing in Pune with nationwide supply capability gives Pioneer Tapes shorter lead times for Maharashtra-region HVAC contractors and insulation specialists, and dependable delivery for commercial building services and industrial insulation projects across other states.
- Strong Hot Melt Adhesive for Immediate, Durable Bond: The hot melt adhesive system bonds on contact with foil-faced insulation surfaces without the curing time that water-based adhesive tapes require, allowing installation to proceed immediately after application — important on project sites where insulation work is on the critical path of the programme.
- Standard Widths for Common Duct & Pipe Seaming: Available in 2", 4", and 6" (50mm, 100mm, 150mm) — the widths that cover the vast majority of duct board seaming, ASJ closure, and pipe insulation joint sealing applications. Custom widths available on request for non-standard applications.
- Bulk Supply for Insulation Contractors & HVAC Projects: Whether you're a mechanical insulation contractor managing tape supply across multiple commercial projects or a contractor managing a large single building services installation, Pioneer handles bulk FSK tape orders with consistent quality, scheduled supply, and dedicated account support.
- Consistent Laminate Quality Across Every Roll: FSK tape that varies in foil gauge, scrim density, or adhesive coat weight between rolls creates inconsistent sealing and vapour barrier performance — a real quality risk in insulation systems where system performance is assessed holistically rather than seam by seam. Pioneer's controlled lamination process ensures consistent three-layer construction quality across every roll.
- Trusted by Multinational Companies: Today, we're proud to support a wide range of multinational companies with our solutions — including HVAC contractors, insulation specialists, and building services companies who depend on consistent FSK tape performance across their commercial and industrial projects.
Frequently Asked Questions
FSK (Foil Scrim Kraft) tape is used primarily for sealing the seams, joints, and closures on HVAC insulation systems — specifically on aluminium-faced fibreglass duct boards, ASJ/All-Service Jacket faced pipe insulation, and foil-faced blanket duct wrap insulation. Its primary role is completing the vapour barrier across the insulation system at every joint, while also providing a strong, durable mechanical seal that holds under the thermal and mechanical stresses of HVAC operation.
FSK stands for Foil-Scrim-Kraft — the three materials that make up the tape's composite structure. The Foil is an aluminium foil outer face that provides the vapour barrier, durability, and reflectivity. The Scrim is a woven fibreglass reinforcement layer embedded within the tape that provides tensile strength and tear resistance. The Kraft is the innermost kraft paper layer that adds flexibility and pliability, allowing the tape to be applied around bends and corners without the foil cracking.
Standard aluminium foil tape (without the scrim and kraft layers) is a thinner, more economical option suitable for general duct sealing and surface patching applications. FSK tape's fibreglass scrim reinforcement gives it significantly higher tensile strength — tested at 27.48 N/in versus the much lower strength of plain foil tape — making it the correct specification for insulation system closure and seaming on duct boards and pipe insulation, where the tape needs to hold mechanically across the joint over the full service life of the insulation system. FSK tape's kraft layer also makes it more conformable around irregular insulation surfaces.
Pioneer's FSK tape is formulated and specified for bonding to aluminium-faced fibreglass duct board, ASJ (All-Service Jacket) pipe insulation facing, and foil-faced blanket insulation. The hot melt adhesive bonds reliably to these foil-faced insulation surfaces on contact. As with any pressure-sensitive tape, surface preparation is important — the facing should be clean, dry, and free from dust, loose fibres, and moisture for the adhesive to achieve full contact and long-term bond strength.
Pioneer's FSK foil tape performs within a service temperature range of -20°C to +80°C (-4°F to 176°F) — covering the operational range of commercial HVAC ductwork, chilled water pipe insulation, and building services applications. For applications at temperatures outside this range — such as process steam pipe insulation or very low-temperature refrigeration — contact Pioneer's team to confirm the appropriate tape specification.
Pioneer's standard FSK tape widths are 2" (50mm), 4" (100mm), and 6" (150mm). The 2" width is commonly used for sealing longitudinal seams on duct board panels. The 4" width provides wider coverage for butt joint sealing between duct board sections, where the broader tape improves seam sealing at panel ends. The 6" width is used for wider seam applications and for sealing at duct board corners and transitions. Custom widths are available on request.
Yes. Pioneer Tapes supplies FSK foil tape in bulk to HVAC duct board installers, mechanical insulation contractors, building services MEP contractors, and facilities management companies across India. Bulk orders are managed with dedicated account support, consistent laminate quality across every supply batch, and scheduling to fit your project programme or ongoing supply requirements. Contact us with your volume requirements, preferred widths, and project details, and we'll structure a supply arrangement accordingly.
